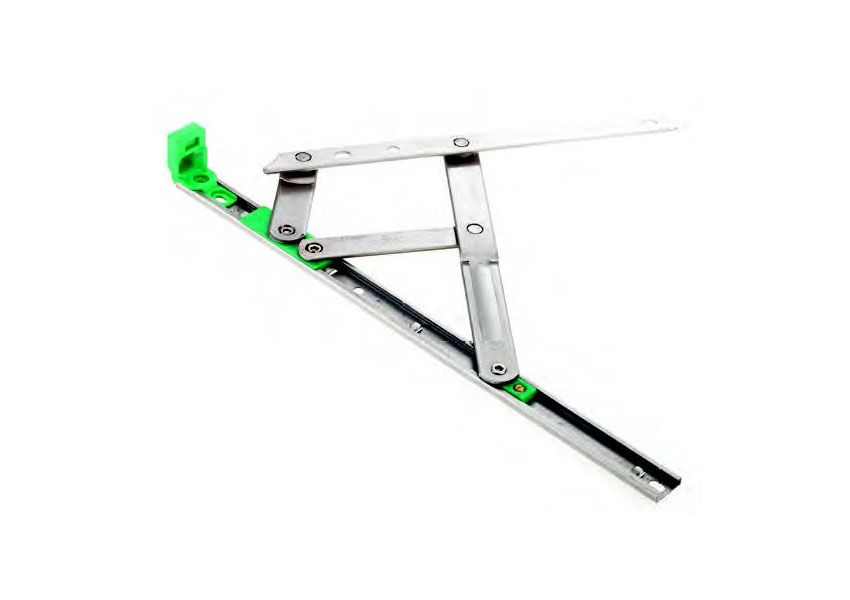

Heavy Duty Easy Clean Hinges

Suitable for use with triple glazing in standard profile systems and wide side hung sashes

Features

• Meets the emergency egress requirements of Approved Document B
• Easy-clean facility enables sash to be moved to the opposite side of the frame for easy cleaning of external window pane
• Can be fitted to a standard 16mm track without any modifications to the profile • 33% stronger than a standard side hung friction stay
• Manufactured from stainless steel
• Supports the additional weight of triple glazed units in their frames whilst maintaining smooth operation
• Stack heights - 14mm, 17mm
• Sizes - 12”, 16”
• 40kg maximum sash weight
• 900mm maximum rebate width
• Independently tested to PAS24: 2012
• Weather resistance - tested to BSEN 1670 Grade 4, achieving 240 hours salt spray
• Mechanical load tested to BS6375-2
