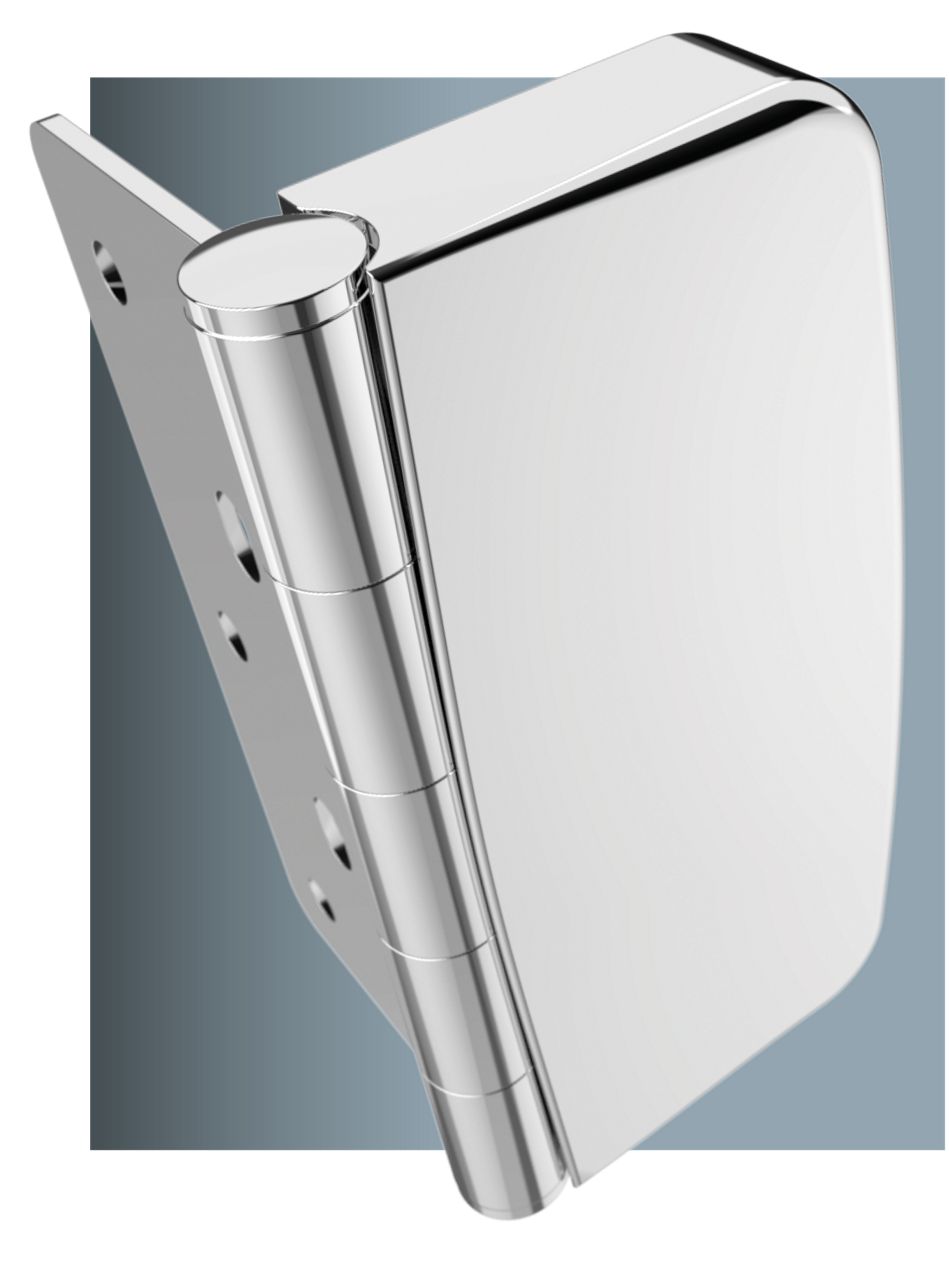

Evolution High Security Door Hinge

With MAGNETIC QUICK-FIT TECHNOLOGY.

For Composite doors.

Offers a game-changing combination of

high security, slim design and magnetic technology

for even faster fitting.

Delivers installation speed via unique magnetic ‘quick fit’ technology for fast fitting of the hinge cover.

The innovative design locates over guide fins on the sash part of the hinge and high strength N42 Neodymium magnets, with a 0.9Kg pull force, secure the hinge lid into place.

Additionally, the clever all-in-one design eliminates the need for end caps or covers for enhanced efficiency for fabricators.

Take a Closer Look

  • Guide Fins

    To locate hinge cover & for ease of fitting.

  • Quick Fit

    High-strength magnets secure hinge cover.

  • Slim Design

    Subtle sight-lines that do not encroach on the profile.

  • Jigless Installation

    Simple to install without the need for extra prep or a jig.

  • Strong Knuckle Design

    & steel hinge pin for added strength.

Fast, Clever, High Performance Slim & Secure



Magnetic Technology
Strong N42 magnets located on the inside edge of the sash part & beneath the hinge lid provide a secure ‘quick fit’.

Tech Tape
Static cling tape prevents scratching of the hinge lid during installation & features adjustment instructions.

Easy Adjustment
Rotate your Allen key 90° (shown right) to achieve +/-2mm lateral adjustment. Lock into place to prevent creep.

Vertical adjustment can be achieve via frame fixing points.

Supplied Fully Assembled
Ready to fit, straight from the box.





10 Finishes

  • Polished Gold

  • Polished Chrome

  • Smokey Chrome

  • Smooth Satin

  • Brushed

  • Black

  • White

  • Light Oak

  • Brown

  • Anthracite Grey

Accreditations and Guarantees

As well as the product information included, please see our downloadable literature which includes technical drawings and part numbers.



Download our brochure
