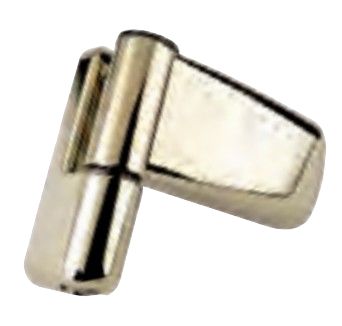

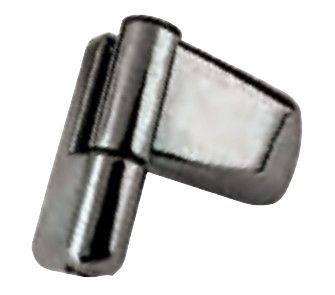

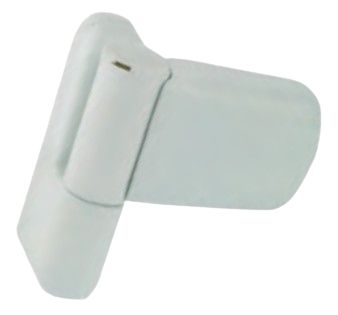

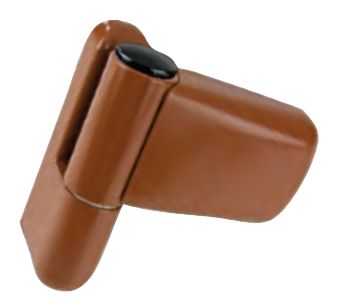

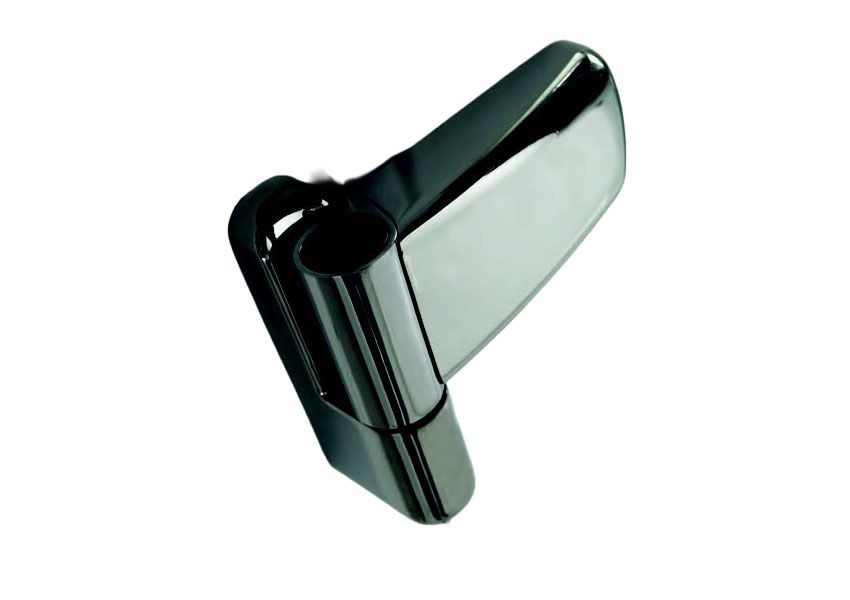

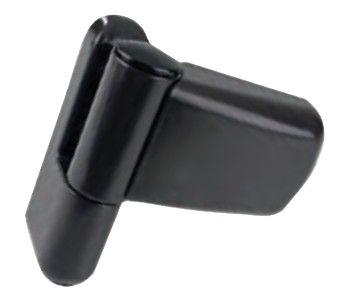

iDeal Flag Hinge

Steel hinge pin for enhanced strength

Features

• 3 dimensional adjustment - vertical (+4mm), lateral (+/- 5mm) and fine tuning for compression (+/- 1mm)
• Adjustment with 5mm Allen key achieved without removing door leaf from frame
• Steel hinge pin for enhanced strength
• Captive sash retaining screw for simple sash lid fitting
• ‘Lift-on, lift-off’ design for efficient on-site installation by one person
• Positive location of the top cover cap and height adjustment packer further eases fabrication
• 4 over-rebate bushes to fit over-rebate heights 14 - 24mm - bushes are marked 14-20mm, 15-19mm,16-18mm and 17mm
• Utilises only 1 frame packer to alter over-rebate heights by a further 4mm, suiting a range of profile systems
• ‘Friction fit’ packer for ease of fabrication
• Tested to exceed BS6375-2 requirements
• Tested to 50,000 cycles underload
• Exceeds 96 hours salt spray corrosion resistance requirements - plated finishes 240 hours, powder coated finishes 480 hours
• Maximum sash weight 80kg with (2 hinges)
