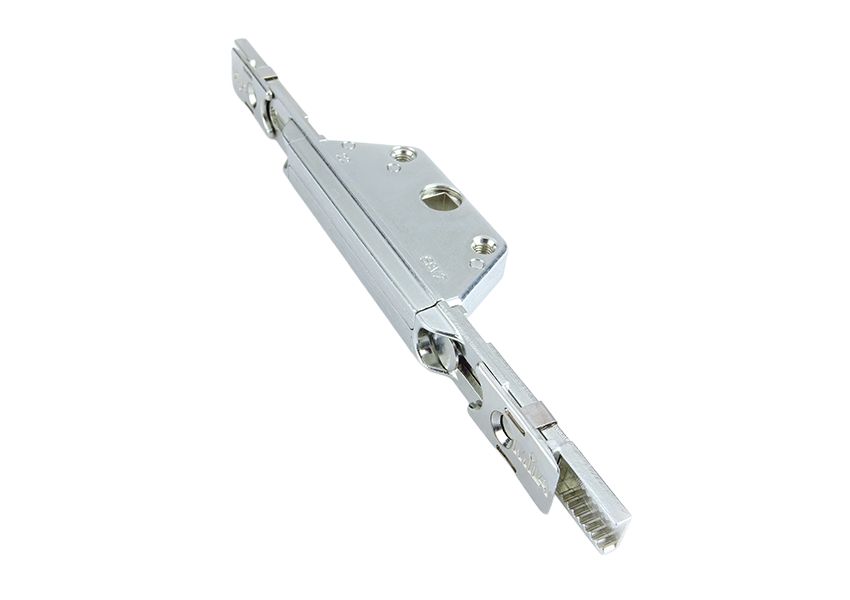

ProLinea Gearbox and Shootbolt Espag

One size accommodates both standard and reduced depth eurogrooves

Features

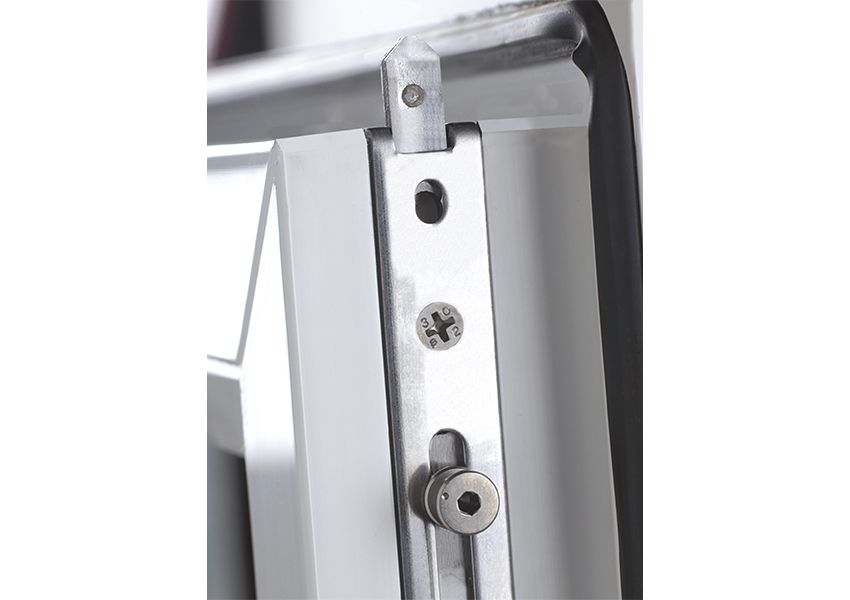

• Mushroom-headed steel cams

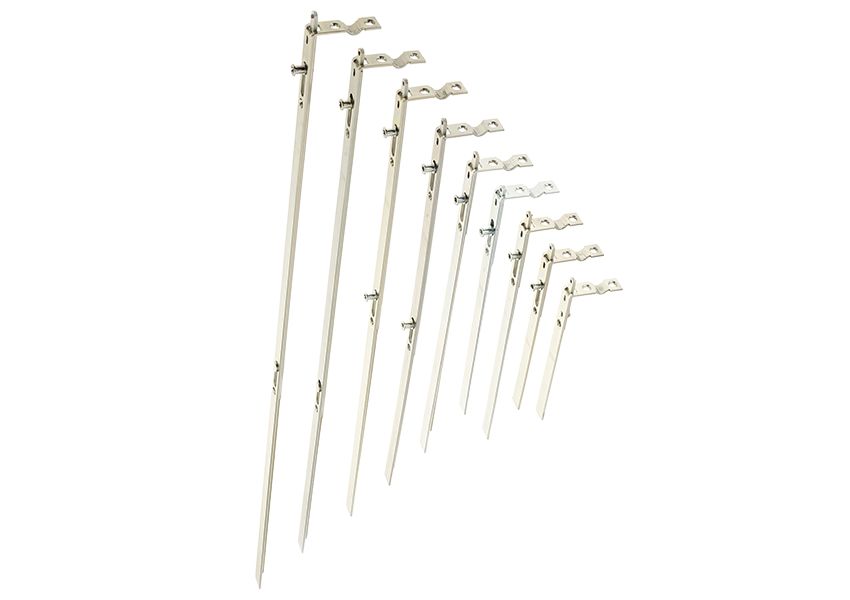

• Stainless steel shootbolts top and bottom

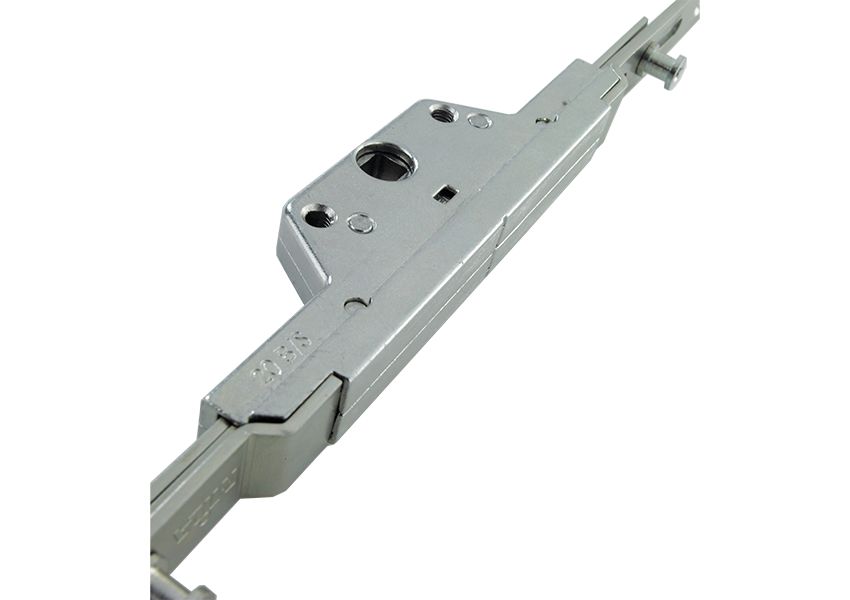

• Robust reverse action gearbox
• Concealed internal guides within gearbox for smooth operation and enhanced durability

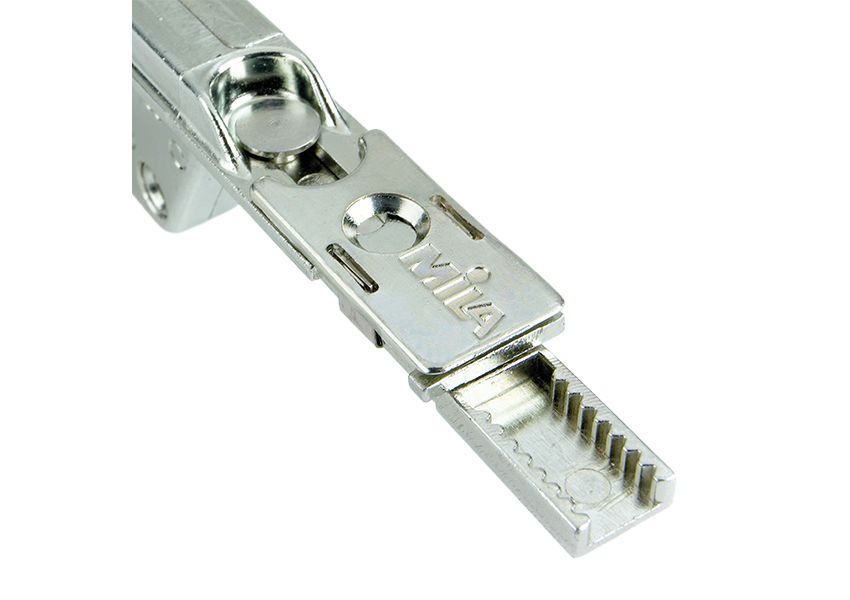

• Slide tags simply locate over the shootbolt couplings to speed fabrication
• Option of 20mm or 22mm backset
• Options of without or with mushroom cams in sizes 8mm, 9mm or 13mm
• Compression adjustable mushroom cams (+/- 1mm)
• Independently tested to 20,000 cycles for operational reliability
• Strikers available on request
