Yale Postmaster Professional TS008 Letterplate

Designed with security in mind, the inner flap has a positive stop feature to guard against common attack methods and ‘fishing’.

The Yale Postmaster Professional TS008 letterplate boasts a long list of features that set it apart from the other letterplate options. With its 96mm sightline height, and telescopic feature allowing it to suit a range of door types and thicknesses, this letterplate offers the utmost practicality and versatility.

Features

  • Patent pending design features
  • Inner flap has a positive stop feature to guard against 'fishing'
  • Internal design houses a unique concealed hinge mechanism
  • Available as a stand-alone unit with no further attachments
  • Fitted with a complete gasket for ultimate weather sealing
  • As little as 4 x M4 screws for easy installation
  • External flap manufactured from Austenitic 304 stainless steel for ultimate corrosion resistance
  • Smooth radius edges
  • 96mm sightline height
  • Telescopic sleeve to suit a variety of door thicknesses (40mm to 75mm)

Specifications

  • TS008:2015 accredited
  • KM 751616
  • Conforms to the requirements of PAS 24:2016 and Approved Document Q
  • Can be fitted to any timber of composite door for TS008:2015 compliance
  • External unit corrosion tested to BS EN 1670 Grade 5 - tested in excess of 1000 hours NSST
  • Endurance tested to 20,000 cycles
  • 10-year Mechanical Guarantee
  • 25-year Surface Finish Guarantee
  • Meets the requirements of FD30 and FD60 when tested as part of a door set
  • Tested in accordance with BS 476-22
  • Tested in accordance with EN 1363-1

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

What is 'Fishing'?

Fishing is a common method of attack whereby items such as keys are removed from the home via the letterplate.

TS008:2015 explained

All new Secured-by-Design applications on or after 1st October 2018 will be required to have door sets that’s are fully certified to PAS 24:2016 (Enhanced security performance requirements for door sets and windows in the UK). The updated PAS 24:2016 standard references the Door and Hardware Federation (DHF) TS008: 2015 security standard. This means that to meet the latest requirement the door will require a TS008 accredited letterplate to comply.

TS008 letterplates are referenced within the Building Regulations Approved Document Q as being shown to protect against various attack methods, including letterplate ‘fishing’

This technical specification provides a means of evolution against opportunist attack and to prevent contents from being removed from the property. It applies to all letterplate assemblies that allow mail to pass directly through a door or side panel and all slide through boxes that allow mail to pass directly through a door or door side panel.*

FD60

The FD60 specification tests doorsets to withstand at least 60 minutes protection against fires. When tested as part of a doorset, Yale’s Postmaster Professional TS008 letterplate not only exceeded the FD60 time test by an additional 25%, but also successfully passed the smoke leakage test.



*Technical specification TS008:2015/ DHF1112:04/16

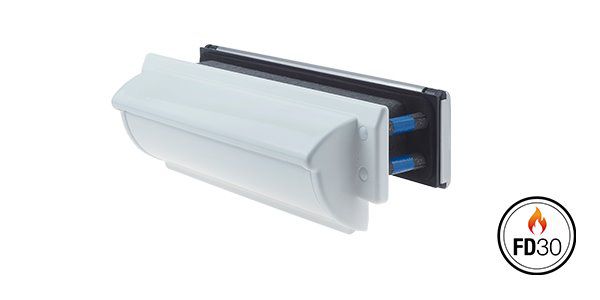

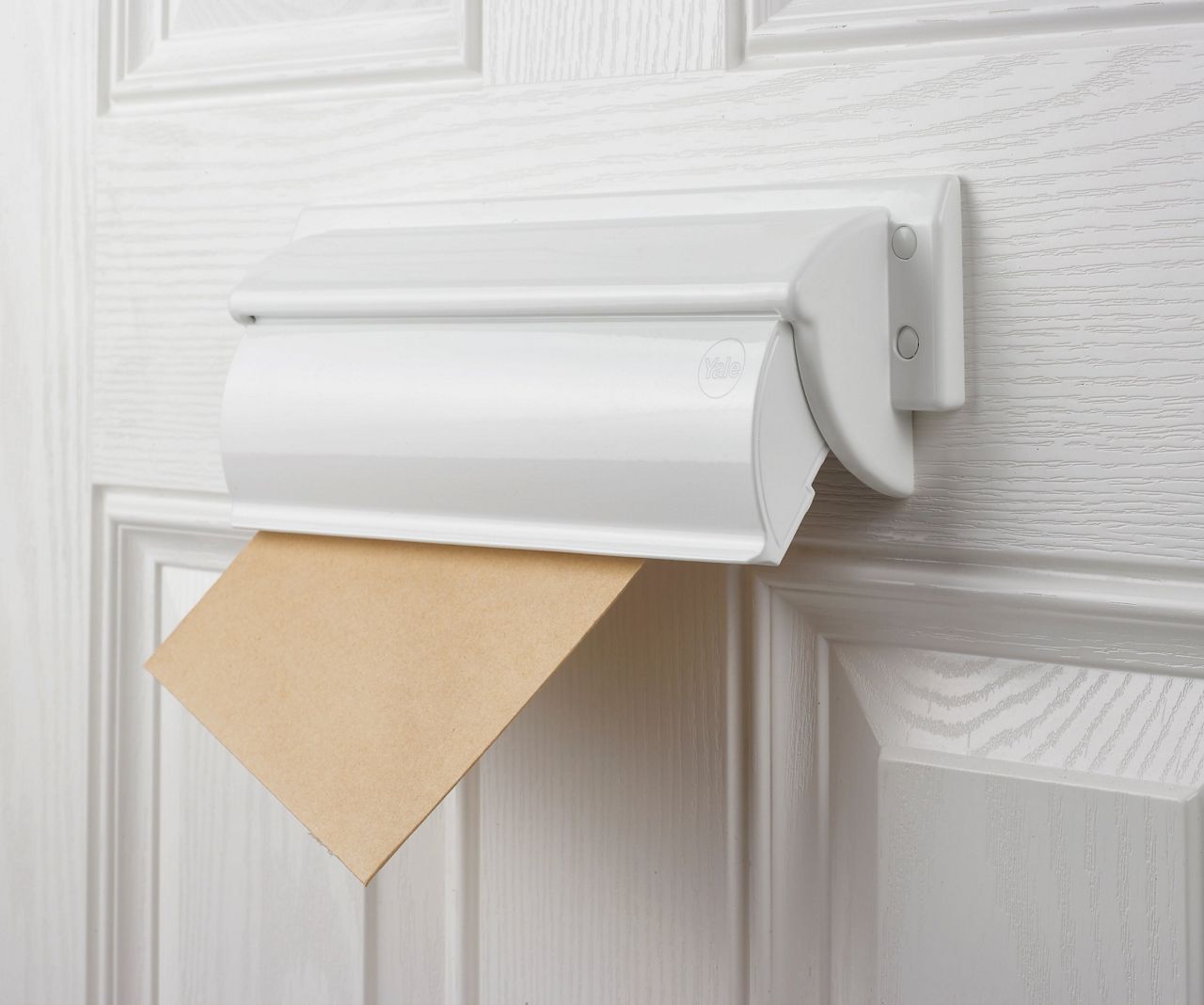

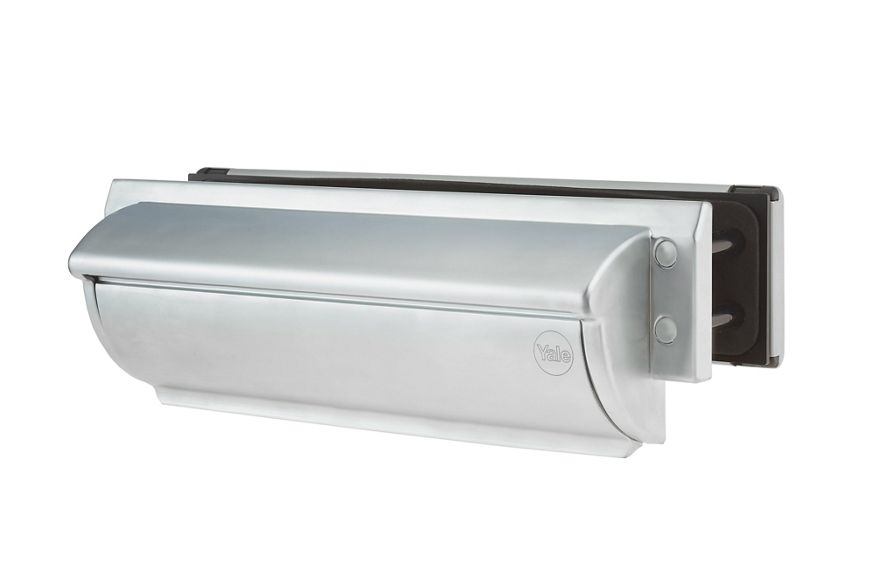

Image:  Yale Postmaster Professional TS008 Letterplate
Yale Postmaster Professional TS008 Letterplate

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Product Product ID
  0793-XXXX-External colour-Internal colour
  Standard Variants
TS008 Letterplate Black/Black (Comp/UPVC) 0793-3000-BK-BK
TS008 Letterplate Black/ White (Comp/UPVC) 0793-3000-BK-WH
TS008 Letterplate Brushed Silver/ White (Comp/UPVC) 0793-3000-BS-WH
TS008 Letterplate Chrome/ White (Comp/UPVC) 0793-3000-CH-WH
TS008 Letterplate Gold/ White (Comp/UPVC) 0793-3000-GO-WH
TS008 Letterplate Satin Silver/ White (Comp/UPVC) 0793-3000-SS-WH
TS008 Letterplate White/ White (Comp/UPVC) 0793-3000-WH-WH
TS008 Letterplate Brushed Steel/Brushed Steel (Comp/UPVC) 0793-3000-BS-BS
TS008 Letterplate Chrome/Chrome (Comp/UPVC) 0793-3000-CH-CH
TS008 Letterplate Gold/Gold (Comp/UPVC) 0793-3000-GO-GO
TS008 Letterplate Satin Silver/Satin Silver (Comp/UPVC) 0793-3000-SS-SS
  FD60 Variants
TS008 FD60 Letterplate Satin Black/Satin Black (Comp/UPVC) 0793-4000-SB-SB-FD60
TS008 FD60 Letterplate Satin Black/White (Comp/UPVC) 0793-4000-SB-WH-FD60
TS008 FD60 Letterplate Brushed Stainless/White (Comp/UPVC) 0793-4000-BS-WH-FD60
TS008 FD60 Letterplate Brushed Stainless/Brushed Stainless (Comp/UPVC) 0793-4000-BS-BS-FD60
TS008 FD60 Letterplate Chrome/White(Comp/UPVC) 0793-4000-CH-WH-FD60
TS008 FD60 Letterplate Chrome/Chrome (Comp/UPVC) 0793-4000-CH-CH-FD60
TS008 FD60 Letterplate Champagne Gold/Champagne Gold (Comp/UPVC) 0793-4000-CG-CG-FD60
TS008 FD60 Letterplate Champagne Gold/White (Comp/UPVC) 0793-4000-CG-WH-FD60
TS008 FD60 Letterplate Silver/White (Comp/UPVC) 0793-4000-SL-WH-FD60
TS008 FD60 Letterplate Silver/Silver (Comp/UPVC) 0793-4000-SL-SL-FD60
TS008 FD60 Letterplate White/White (Comp/UPVC) 0793-4000-WH-WH-FD60
  • Yale_DWS_TS008_Whitepaper_FV(PDF, 2 MB)
  • TS008 Letterplate Installtion - Aug 2023 V-1.6(PDF, 2 MB)
  • Yale Postmaster Professional TS008 Letterplate Presenter _Web_16.02.22(PDF, 671 KB)
  • TS008 FD60 Installation Guide July 22(PDF, 4 MB)
  • Postmaster Professional installation TS008 FD30 - July 2022(PDF, 2 MB)

Download our full product catalogue
