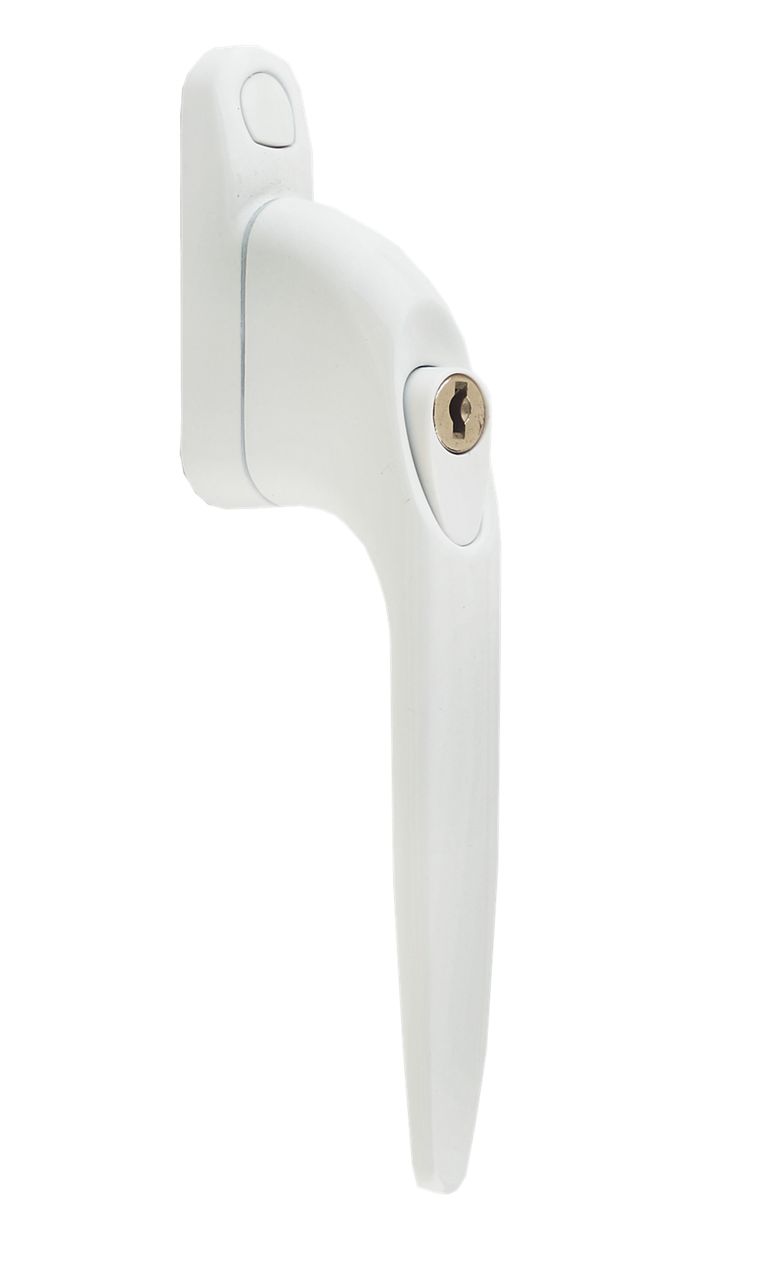

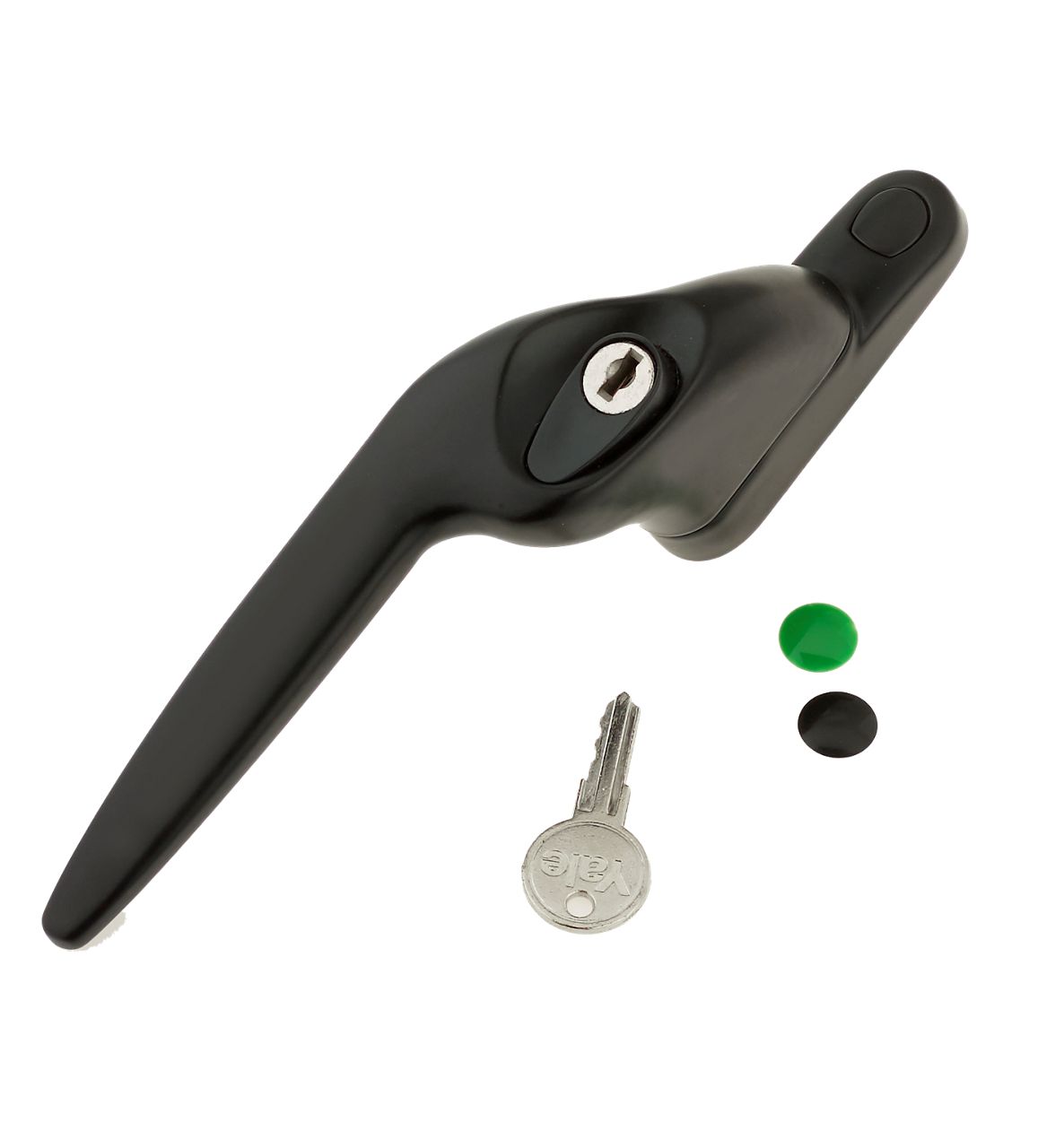

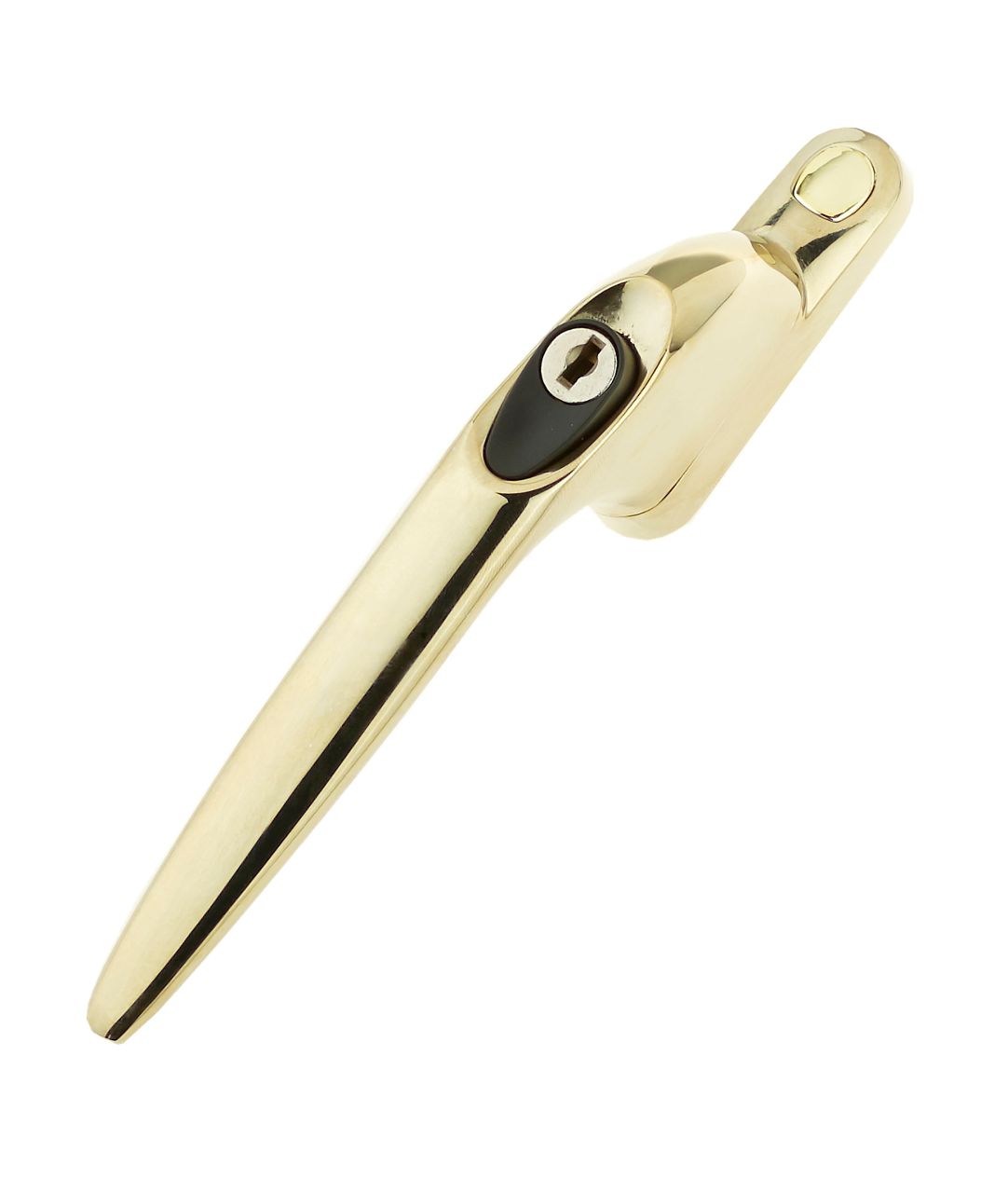

Yale Quartus Espag Handles
The Yale Quartus Espag Handle offers homeowners the ultimate solution with its aesthetically pleasing design and user-friendly functionality, making it the ideal choice for aluminium and uPVC windows.
Available in inline and offset variants as well as a wide range of finishes, this handle has been designed, developed and tested in the UK to Yale's precise standards and high-performance security.
Features
- Push to unlatch Yale branded mechanism
- Key operated locking mechanism
- Key deadlocking for added security and safety
- Non-locking push to unlatch version in Black, White and Green for egress applications available
- Aesthetically pleasing as part of the suited range of window hardware
- Available in inline and offset variants

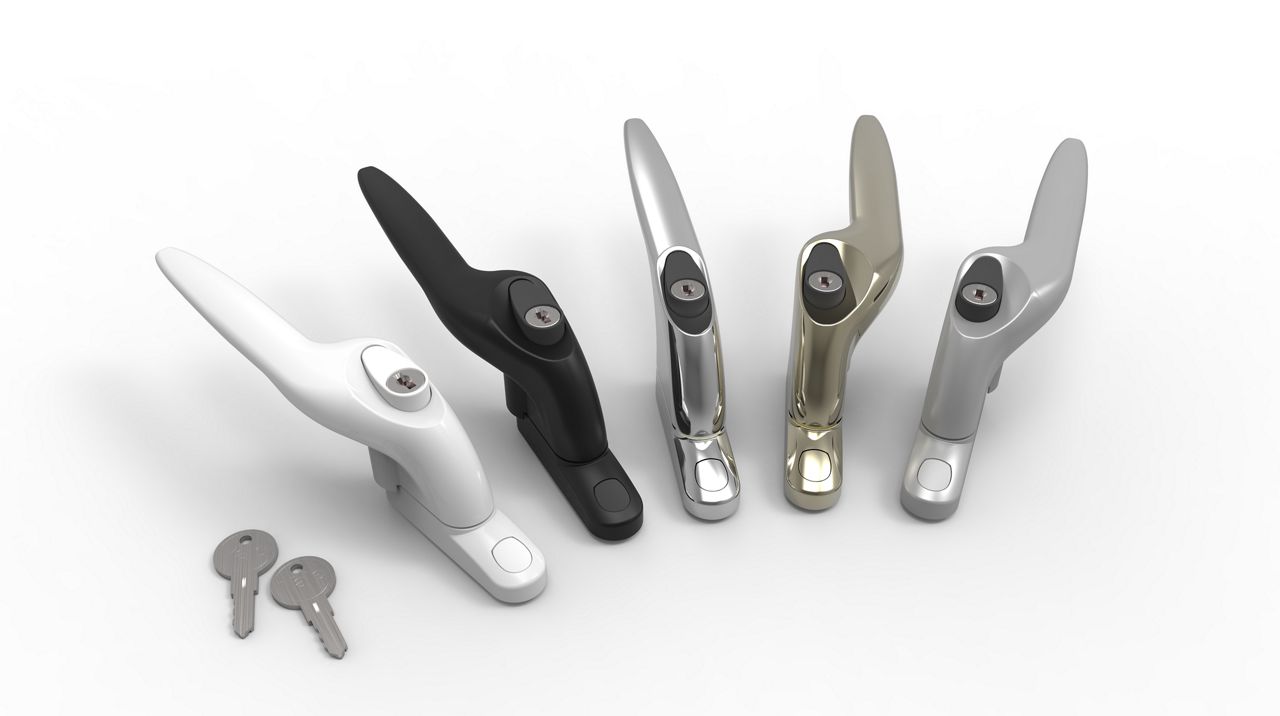

- Available in Satin Black, Chrome, Champagne Gold, Silver, and White finishes
- Available with a variety of spindle lengths ranging from 10mm - 75mm to accommodate a wide range of window profiles*
- Fixed spindle supplied as standard
- Supplied with screws, colour matched screw caps and cylinder plug to achieve a non-locking solution
- Supplied with a Yale branded key
- Spare keys and screw cover caps available upon request
Guarantee and Standards
- 10-year Mechanical Guarantee
- 10-year Surface Finish Guarantee
- Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
- Endurance tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
- Lifetime Security Guarantee when used with other Yale security hardware**
* Other sizes available upon request
** Terms and conditions apply. Please see yaledws.co.uk for further details
Product Product ID YALE QUARTUS LOCKING 15MM CHAMPAGNE GOLD LH YBC15CGL YALE QUARTUS LOCKING 15MM CHAMPAGNE GOLD RH YBC15CGR YALE QUARTUS LOCKING 15MM CHROME LH YBC15CHL YALE QUARTUS LOCKING 15MM CHROME RH YBC15CHR YALE QUARTUS LOCKING 15MM SATIN BLACK LH YBC15SBL YALE QUARTUS LOCKING 15MM SATIN BLACK RH YBC15SBR YALE QUARTUS LOCKING 15MM SILVER LH YBC15SLL YALE QUARTUS LOCKING 15MM SILVER RH YBC15SLR YALE QUARTUS LOCKING 15MM WHITE LH YBC15WHL YALE QUARTUS LOCKING 15MM WHITE RH YBC15WHR YALE QUARTUS LOCKING 20MM CHAMPAGNE GOLD LH YBC20CGL YALE QUARTUS LOCKING 20MM CHAMPAGNE GOLD RH YBC20CGR YALE QUARTUS LOCKING 20MM CHROME LH YBC20CHL YALE QUARTUS LOCKING 20MM CHROME RH YBC20CHR YALE QUARTUS LOCKING 20MM SATIN BLACK LH YBC20SBL YALE QUARTUS LOCKING 20MM SATIN BLACK RH YBC20SBR YALE QUARTUS LOCKING 20MM SILVER LH YBC20SLL YALE QUARTUS LOCKING 20MM SILVER RH YBC20SLR YALE QUARTUS LOCKING 20MM WHITE LH YBC20WHL YALE QUARTUS LOCKING 20MM WHITE RH YBC20WHR YALE QUARTUS LOCKING 30MM CHAMPAGNE GOLD LH YBC30CGL YALE QUARTUS LOCKING 30MM CHAMPAGNE GOLD RH YBC30CGR YALE QUARTUS LOCKING 30MM CHROME LH YBC30CHL YALE QUARTUS LOCKING 30MM CHROME RH YBC30CHR YALE QUARTUS LOCKING 30MM SATIN BLACK LH YBC30SBL YALE QUARTUS LOCKING 30MM SATIN BLACK RH YBC30SBR YALE QUARTUS LOCKING 30MM SILVER LH YBC30SLL YALE QUARTUS LOCKING 30MM SILVER RH YBC30SLR YALE QUARTUS LOCKING 30MM WHITE LH YBC30WHL YALE QUARTUS LOCKING 30MM WHITE RH YBC30WHR YALE QUARTUS LOCKING 35MM CHAMPAGNE GOLD LH YBC35CGL YALE QUARTUS LOCKING 35MM CHAMPAGNE GOLD RH YBC35CGR YALE QUARTUS LOCKING 35MM CHROME LH YBC35CHL YALE QUARTUS LOCKING 35MM CHROME RH YBC35CHR YALE QUARTUS LOCKING 35MM SATIN BLACK LH YBC35SBL YALE QUARTUS LOCKING 35MM SATIN BLACK RH YBC35SBR YALE QUARTUS LOCKING 35MM SILVER LH YBC35SLL YALE QUARTUS LOCKING 35MM SILVER RH YBC35SLR YALE QUARTUS LOCKING 35MM WHITE LH YBC35WHL YALE QUARTUS LOCKING 35MM WHITE RH YBC35WHR YALE QUARTUS LOCKING 40MM CHAMPAGNE GOLD LH YBC40CGL YALE QUARTUS LOCKING 40MM CHAMPAGNE GOLD RH YBC40CGR YALE QUARTUS LOCKING 40MM CHROME LH YBC40CHL YALE QUARTUS LOCKING 40MM CHROME RH YBC40CHR YALE QUARTUS LOCKING 40MM SATIN BLACK LH YBC40SBL YALE QUARTUS LOCKING 40MM SATIN BLACK RH YBC40SBR YALE QUARTUS LOCKING 40MM SILVER LH YBC40SLL YALE QUARTUS LOCKING 40MM SILVER RH YBC40SLR YALE QUARTUS LOCKING 40MM WHITE LH YBC40WHL YALE QUARTUS LOCKING 40MM WHITE RH YBC40WHR YALE QUARTUS LOCKING 50MM WHITE LH YBC50WHL YALE QUARTUS LOCKING 50MM WHITE RH YBC50WHR YALE QUARTUS LOCKING 55MM SILVER LH YBC55SLL YALE QUARTUS LOCKING 55MM SILVER RH YBC55SLR YALE QUARTUS LOCKING 65MM SILVER LH YBC65SLL YALE QUARTUS LOCKING 65MM SILVER RH YBC65SLR YALE QUARTUS LOCKING 75MM SILVER LH YBC75SLL YALE QUARTUS LOCKING 75MM SILVER RH YBC75SLR YALE QUARTUS LOCKING 10MM CHAMPAGNE GOLD INLINE YBI10CG YALE QUARTUS LOCKING 10MM CHROME INLINE YBI10CH YALE QUARTUS LOCKING 10MM SATIN BLACK INLINE YBI10SB YALE QUARTUS LOCKING 10MM SILVER INLINE YBI10SL YALE QUARTUS LOCKING 10MM WHITE INLINE YBI10WH YALE QUARTUS LOCKING 15MM CHAMPAGNE GOLD INLINE YBI15CG YALE QUARTUS LOCKING 15MM CHROME INLINE YBI15CH YALE QUARTUS LOCKING 15MM SATIN BLACK INLINE YBI15SB YALE QUARTUS LOCKING 15MM SILVER INLINE YBI15SL YALE QUARTUS LOCKING 15MM WHITE INLINE YBI15WH YALE QUARTUS LOCKING 20MM CHAMPAGNE GOLD INLINE YBI20CG YALE QUARTUS LOCKING 20MM CHROME INLINE YBI20CH YALE QUARTUS LOCKING 20MM SATIN BLACK INLINE YBI20SB YALE QUARTUS LOCKING 20MM SILVER INLINE YBI20SL YALE QUARTUS LOCKING 20MM WHITE INLINE YBI20WH YALE QUARTUS LOCKING 25MM WHITE INLINE YBI25WH YALE QUARTUS LOCKING 30MM CHAMPAGNE GOLD INLINE YBI30CG YALE QUARTUS LOCKING 30MM CHROME INLINE YBI30CH YALE QUARTUS LOCKING 30MM SATIN BLACK INLINE YBI30SB YALE QUARTUS LOCKING 30MM SILVER INLINE YBI30SL YALE QUARTUS LOCKING 30MM WHITE INLINE YBI30WH YALE QUARTUS LOCKING 35MM CHAMPAGNE GOLD INLINE YBI35CG YALE QUARTUS LOCKING 35MM CHROME INLINE YBI35CH YALE QUARTUS LOCKING 35MM SATIN BLACK INLINE YBI35SB YALE QUARTUS LOCKING 35MM SILVER INLINE YBI35SL YALE QUARTUS LOCKING 35MM WHITE INLINE YBI35WH YALE QUARTUS LOCKING 40MM CHAMPAGNE GOLD INLINE YBI40CG YALE QUARTUS LOCKING 40MM CHROME INLINE YBI40CH YALE QUARTUS LOCKING 40MM SATIN BLACK INLINE YBI40SB YALE QUARTUS LOCKING 40MM SILVER INLINE YBI40SL YALE QUARTUS LOCKING 40MM WHITE INLINE YBI40WH YALE QUARTUS LOCKING 50MM CHAMPAGNE GOLD INLINE YBI50CG YALE QUARTUS LOCKING 50MM CHROME INLINE YBI50CH YALE QUARTUS LOCKING 50MM SATIN BLACK INLINE YBI50SB YALE QUARTUS LOCKING 50MM SILVER INLINE YBI50SL YALE QUARTUS LOCKING 50MM WHITE INLINE YBI50WH YALE QUARTUS NON LOCKING 40MM WHITE LH YC40WHL YALE QUARTUS NON LOCKING 40MM WHITE RH YC40WHR YALE QUARTUS EGRESS GREEN BUTTON 40MM WHITE LH YEC40WHL YALE QUARTUS EGRESS GREEN BUTTON 40MM WHITE RH YEC40WHR YALE QUARTUS EGRESS GREEN BUTTON 30MM WHITE INLINE YEI30WH YALE QUARTUS EGRESS GREEN BUTTON 35MM WHITE INLINE YEI35WH YALE QUARTUS EGRESS GREEN BUTTON 40MM WHITE INLINE YEI40WH YALE QUARTUS NON LOCKING 15MM CHAMPAGNE GOLD INLINE YI15CG YALE QUARTUS NON LOCKING 15MM WHITE INLINE YI15WH YALE QUARTUS NON LOCKING 20MM WHITE INLINE YI20WH YALE QUARTUS NON LOCKING 30MM CHROME INLINE YI30CH YALE QUARTUS NON LOCKING 30MM WHITE INLINE YI30WH YALE QUARTUS NON LOCKING 35MM CHAMPAGNE GOLD INLINE YI35CG YALE QUARTUS NON LOCKING 35MM CHROME INLINE YI35CH YALE QUARTUS NON LOCKING 35MM SILVER INLINE YI35SL YALE QUARTUS NON LOCKING 35MM WHITE INLINE YI35WH YALE QUARTUS NON LOCKING 40MM CHAMPAGNE GOLD INLINE YI40CG YALE QUARTUS NON LOCKING 40MM WHITE INLINE YI40WH YALE QUARTUS NON LOCKING 50MM CHAMPAGNE GOLD INLINE YI50CG YALE QUARTUS NON LOCKING 50MM CHROME INLINE YI50CH YALE QUARTUS NON LOCKING 50MM SATIN BLACK INLINE YI50SB YALE QUARTUS NON LOCKING 50MM SILVER INLINE YI50SL YALE QUARTUS NON LOCKING 50MM WHITE INLINE YI50WH
