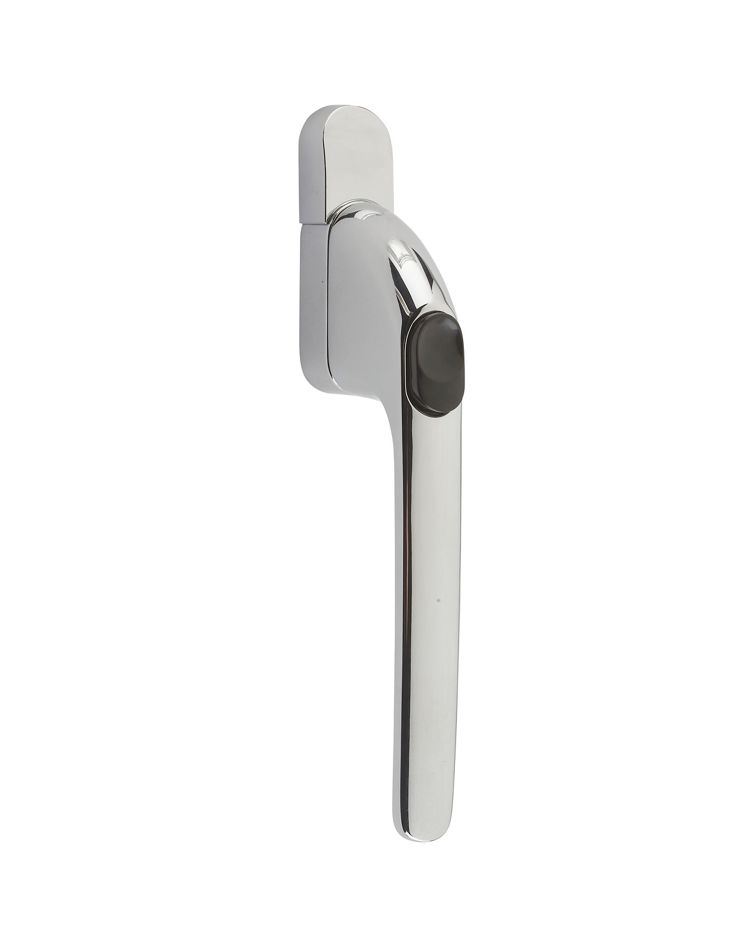

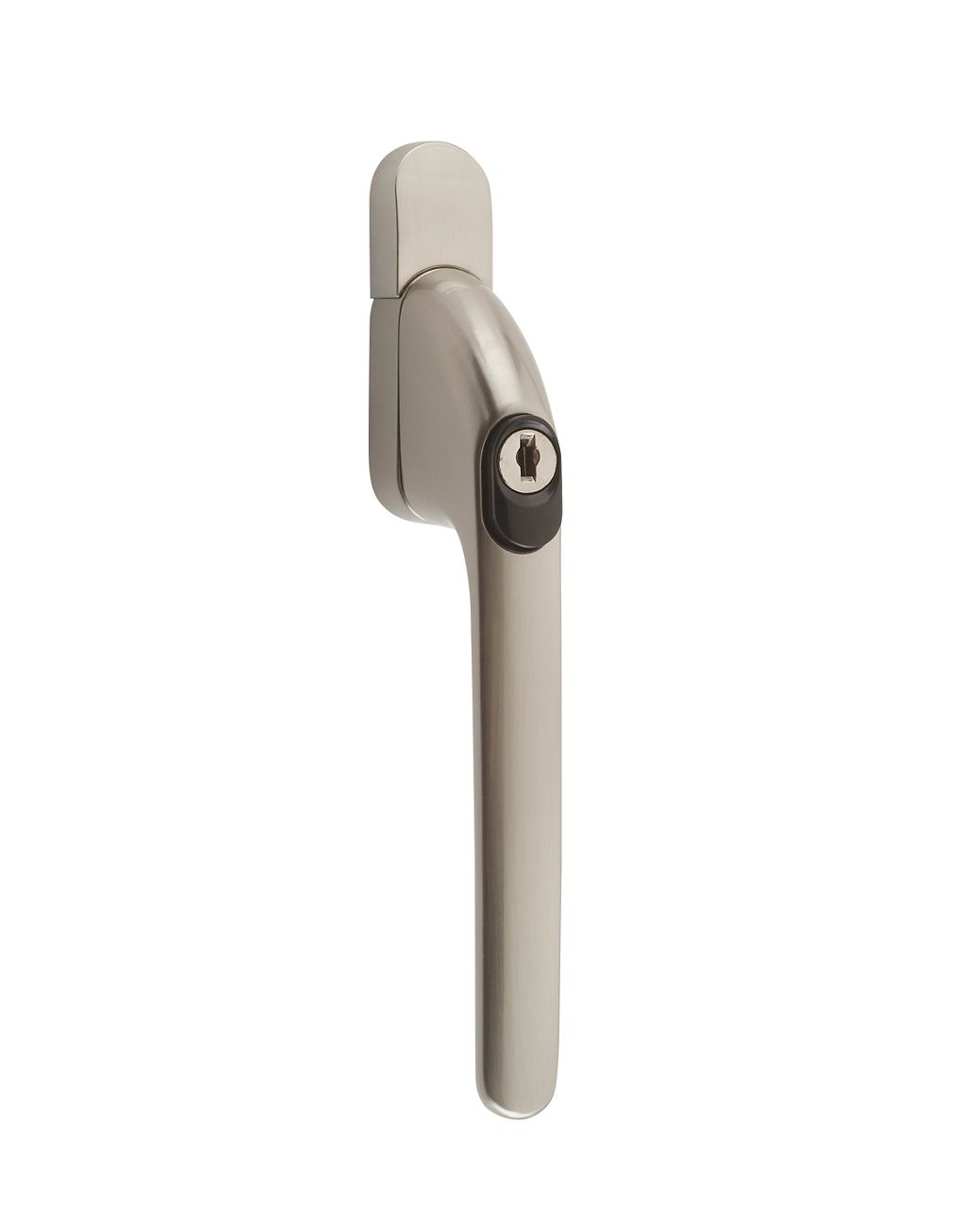

Procore Espag Handles

Combining clean, modern styling with dependable everyday performance, ProCore delivers the practicality, consistency and offers a streamlined solution for manufacturers, installers and specifiers alike.

Introducing ProCore - the latest development in Mila’s hardware range. Designed to support modern fabrication and installation requirements, ProCore is a versatile collection of contemporary window handles engineered to suit a broad range of profiles and applications.



Espag Handle Features

Coordinated contemporary styling

  • Designed to complement the wider ProCore range, the window hardware offers a cohesive, modern look across both doors and windows for a consistent installation aesthetic.

Ergonomic lever design

  • Provides comfortable, controlled operation with a refined tactile feel for everyday use.

Suitable for multiple system types

  • Compatible with PVCu and aluminium systems, using a single handle platform to help reduce complexity across different profiles.

Versatile configuration options

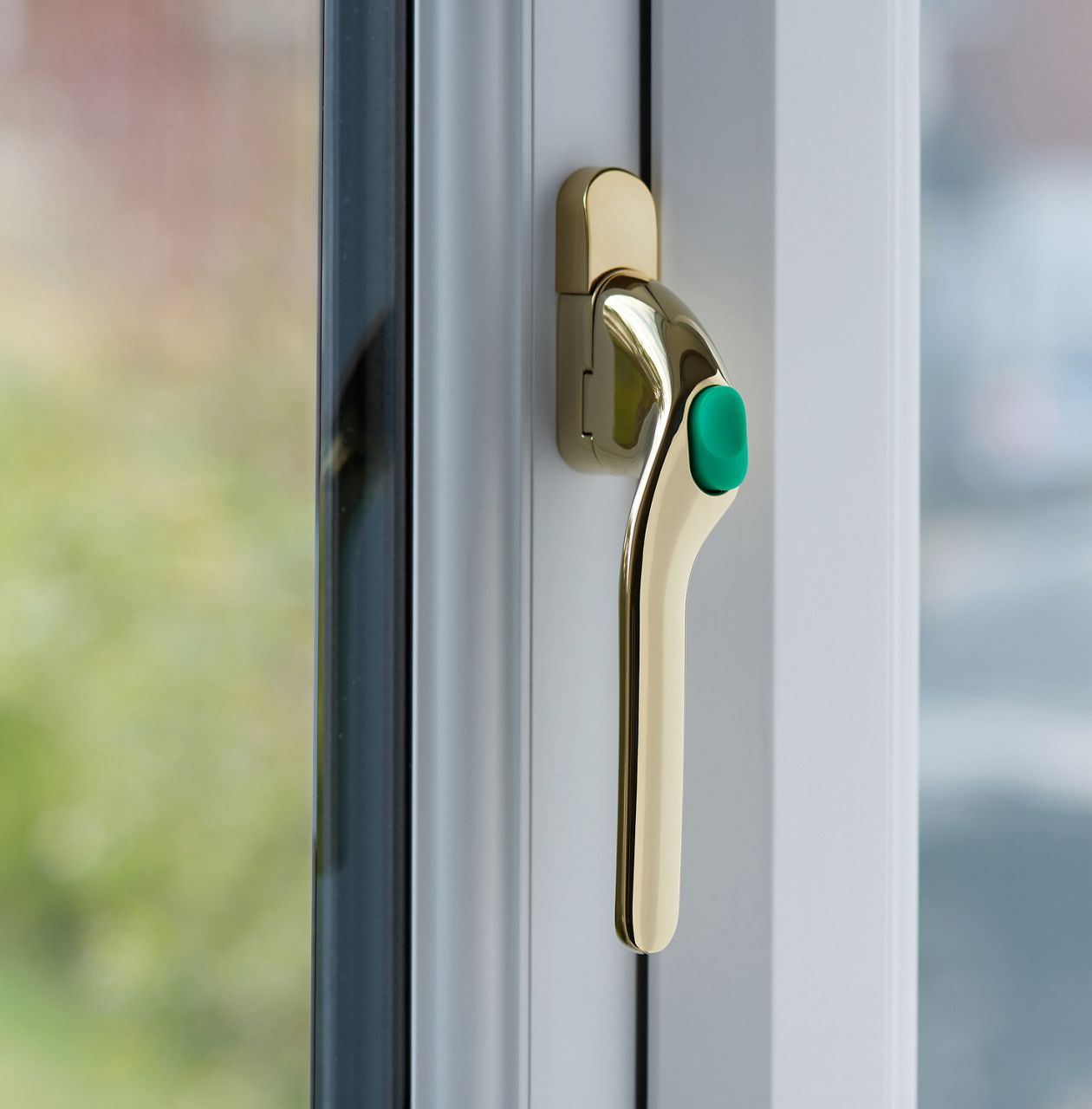

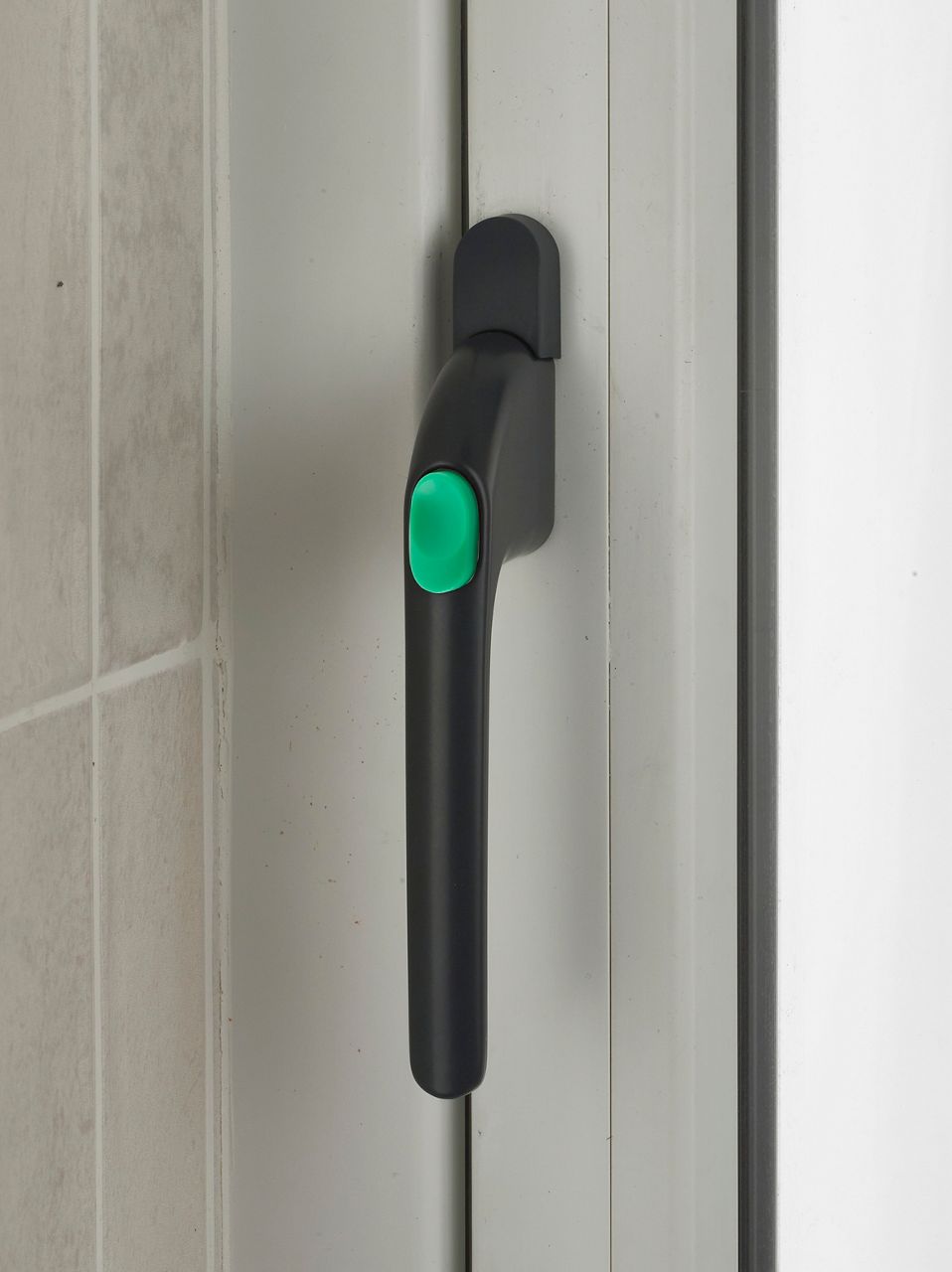

  • Available in inline, offset and green button variants to meet standard market requirements and support accurate specification without unnecessary over-specification.
  • Egress button options are available on request and are not supplied as standard.

Supplied with screw and spindle packs

  • Delivered with the components needed to support efficient installation across a range of applications.

Concealed fixing detail

  • Slide-on, colour-matched cover caps provide a clean, seamless finish by concealing screws and fittings, while also helping protect fixings from dust, moisture and damage. Caps remain easy to remove when required.

Wide range of cover cap finishes

  • Screw cover caps are available in White, Satin Black, Anthracite Grey, Dark Chrome, Satin Chrome, Polished Gold, Brushed Stainless Finish and Chrome.

Comprehensive spindle length options

  • Available in 9mm, 12mm, 15mm, 20mm, 30mm, 35mm, 40mm and 55mm spindle lengths to suit a wide range of window profiles and hardware requirements.

Simple installation

  • Designed for straightforward fitting across common window profiles, without the need for additional components.

Fully suited colour range

  • Enables matching hardware specification across both doors and windows for a coordinated finish across the property.

Additional accessory options

  • Non-locking plugs are sold separately.

Available finishes

  • Offered in White, Satin Black, Anthracite Grey, Dark Chrome, Satin Chrome, Polished Gold, Brushed Stainless Finish and Chrome.



Technical Specifications

BS EN 1906:2012

  • Tested to 25,000 handle cycles and 6,250 lock barrel cycles

BS EN 1670, Grade 5

  • Tested to exceed 480 hours salt spray*

BS EN 13126-3:2011

  • Tested to 50kg

Mechanical Guarantee

  • 10-year mechanical guarantee

Surface Finish Guarantee

  • Painted finishes: 10 years
  • Decorative finishes: 5 years

* Excluding Dark Chrome. Dark Chrome variants have been tested to BS EN 1670, Grade 4, exceeding 240 hours salt spray.

  • White

  • Black Stainless

  • Anthracite Grey

  • Polished Gold

  • Brushed Stainless

  • Chrome

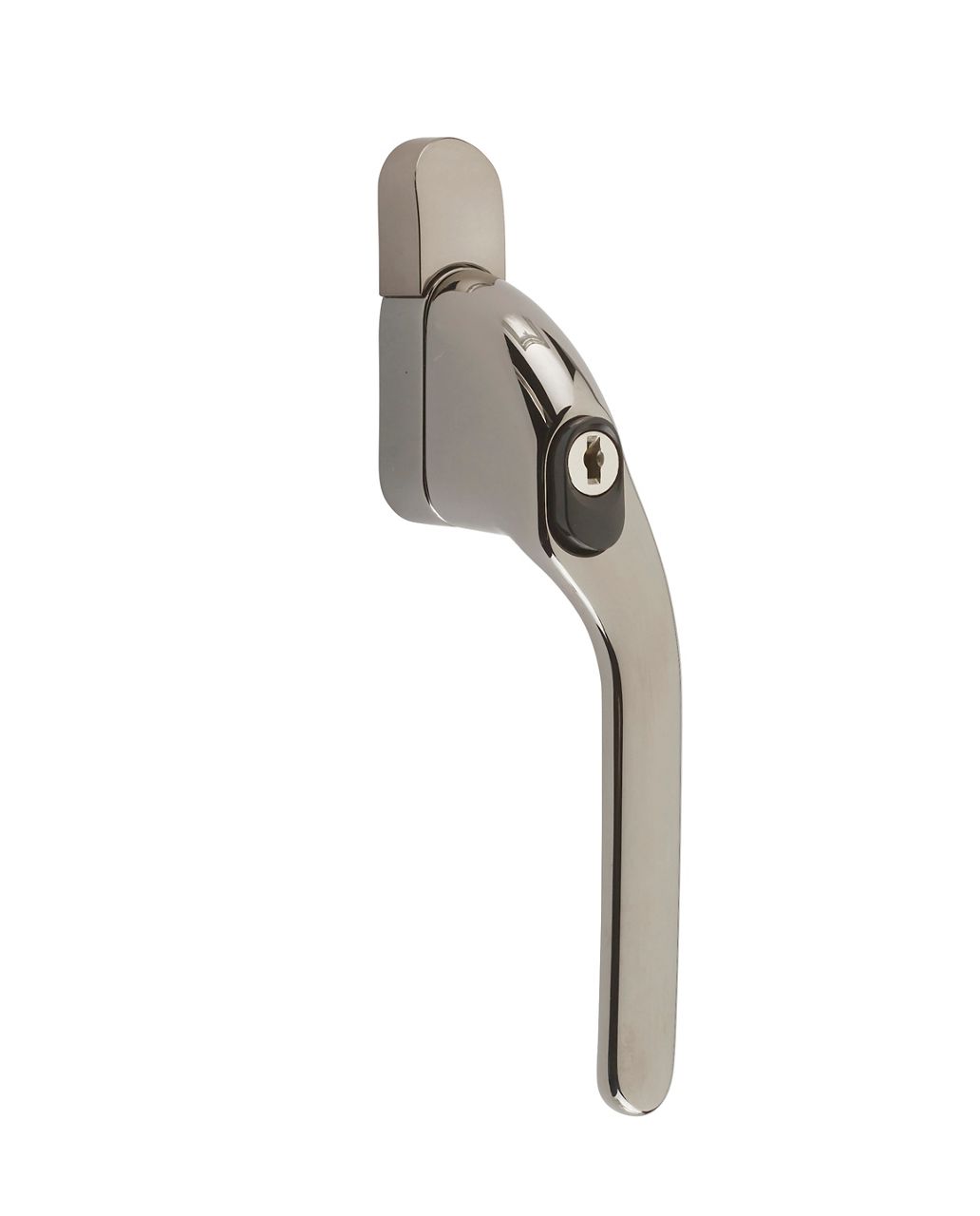

  • Dark Chrome
