Hero™ Espag Handles

Manufactured from a high performance zinc alloy, Hero^™ espag handles are simple to fit, easy to operate and suitable for casement windows.

The ergonomic lever is contoured to the shape of your hand, with contemporary styling ensuring a crisp lever return and a positive stop featured on the rose of the offset espag handles.

Features

9 pin lengths to suit common profiles - 9mm, 12mm, 15mm, 20mm, 25mm, 30mm, 35mm, 40mm and 45mm
5 suited finishes - polished gold, polished chrome, smooth satin chrome, white and black

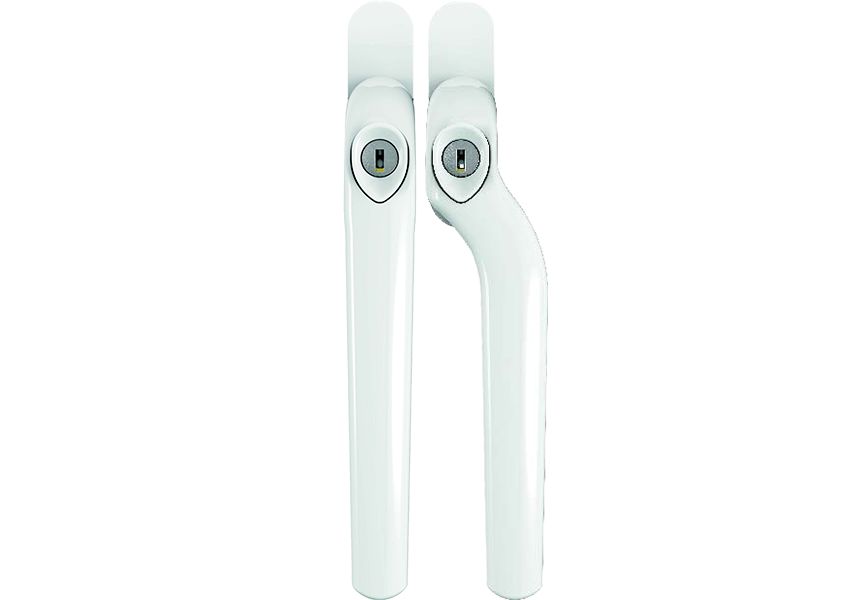

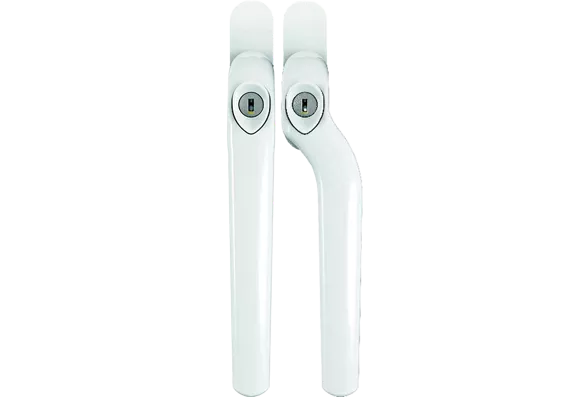

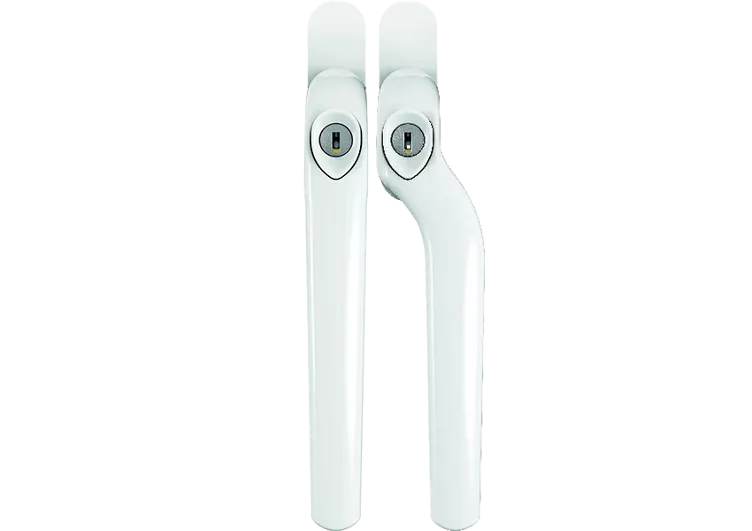

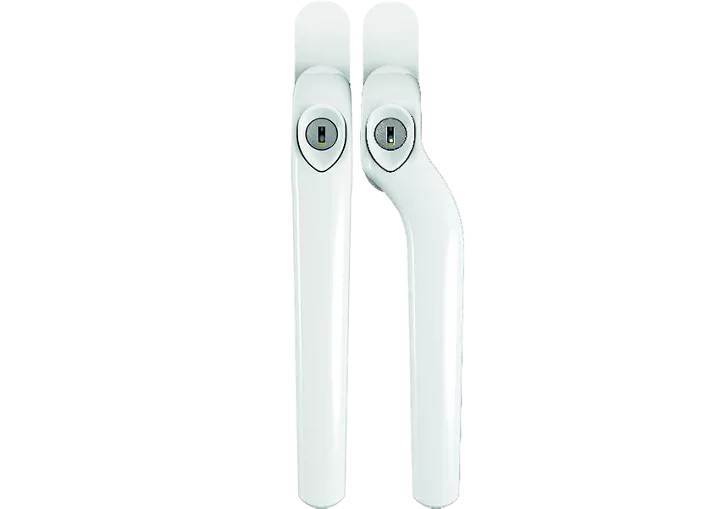

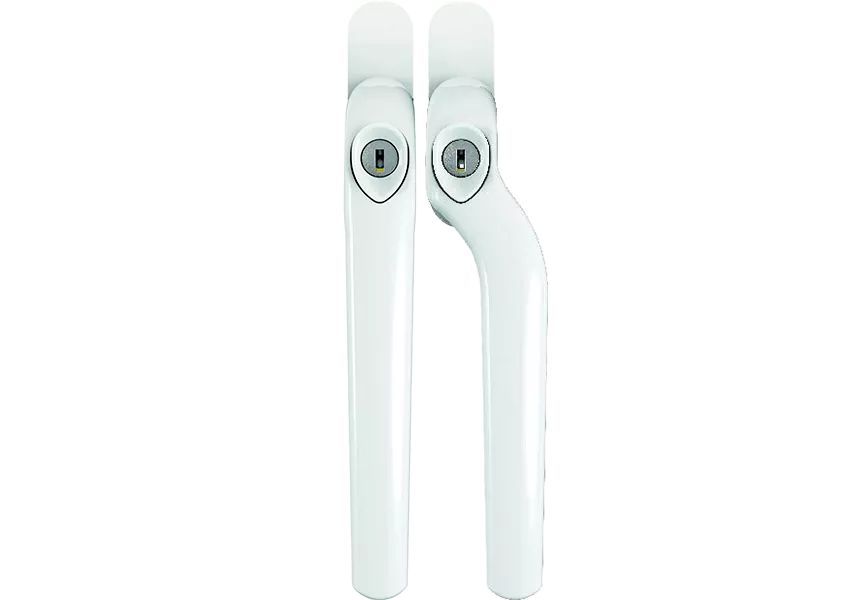

Available in both inline and offset levers
Supplied complete with 2 fixing screws, 1 key and 2 cover caps as standard
Corrosion resistance - tested to BSEN 1670 grade 4 for the plated finishes, and grade 5 for powder coated black and white
10 year mechanical operation guarantee

Available in 5 finishes.

Polished Gold
Polished Chrome
Smooth Satin Chrome
White
Black
Anthracite Grey
Satin Nickel

1 of 14

Description	Pin Length	Polished Gold	Polished Chrome	Smooth Satin Chrome	White	Black	Anthracite Grey	Satin Nickel

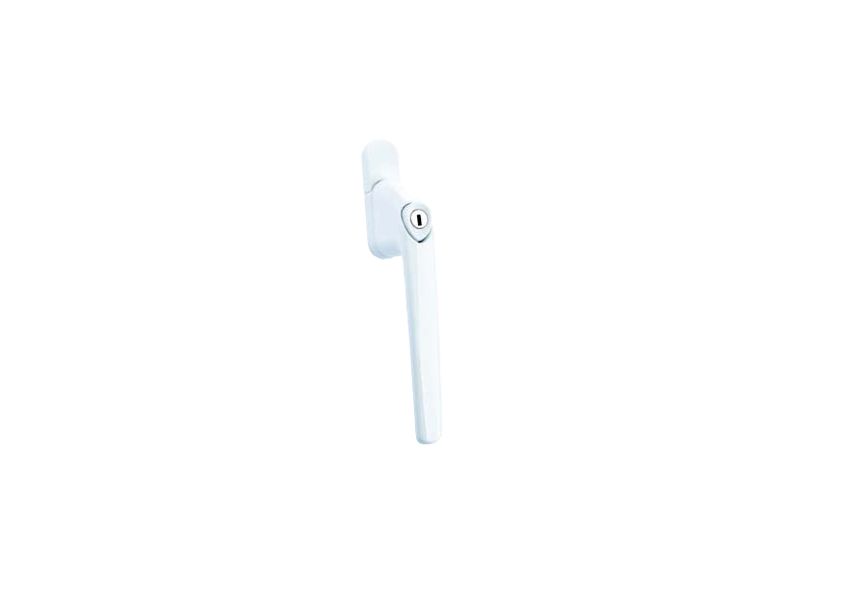

Hero Inline Espag Handle	9mm	566020	566040	566060	566000	566100	566140	566120
Hero Inline Espag Handle	12mm	566021	566041	566061	566001	566101	566141	566121
Hero Inline Espag Handle	15mm	566022	566042	566062	566002	566102	566142	566122
Hero Inline Espag Handle	20mm	566023	566043	566063	566003	566103	566143	566123
Hero Inline Espag Handle	25mm	566024	566044	566064	566004	566104	566144	566124
Hero Inline Espag Handle	30mm	566025	566045	566065	566005	566105	566145	566125
Hero Inline Espag Handle	35mm	566026	566046	566066	566006	566106	566146	566126
Hero Inline Espag Handle	40mm	566027	566047	566067	566007	566107	566147	566127
Hero Inline Espag Handle	45mm	566028	566048	566068	566008	566108	566148	566128
Hero Inline Espag Handle	50mm						566149	566129
Hero Inline Espag Handle	55mm						566150	566130
Hero Espag Handle Slide on Cover							566909
Box Quantity		40	40	40	40	40
Pallet Quantity		2520	2520	2520	2520	2520

Description	Pin Length	Hand	Polished Gold	Polished Chrome	Smooth Satin	White	Black	Anthracite Grey
Hero Offset Espag Handle	9mm	R/H	566440	566480	566520	566400	566600	566670
Hero Offset Espag Handle	9mm	L/H	566441	566481	566521	566401	566601	566671
Hero Offset Espag Handle	12mm	R/H	566442	566482	566522	566402	566602	566672
Hero Offset Espag Handle	12mm	L/ H	566443	566483	566523	566403	566603	566673
Hero Offset Espag Handle	15mm	R/H	566444	566484	566524	566404	566604	566674
Hero Offset Espag Handle	15mm	L/H	566445	5666485	566525	566405	566605	566675
Hero Offset Espag Handle	20mm	R/H	566446	566486	566526	566406	566606	566676
Hero Offset Espag Handle	20mm	L/H	566447	566487	566527	566407	566607	566677
Hero Offset Espag Handle	25mm	R/H	566448	566488	566528	566408	566608	566678
Hero Offset Espag Handle	25mm	L/H	566449	566489	566529	566409	566609	566679
Hero Offset Espag Handle	30mm	R/H	566450	566490	566530	566410	566610	566680
Hero Offset Espag Handle	30mm	L/H	566451	566491	566531	566411	566611	566681
Hero Offset Espag Handle	35mm	R/H						566682
Hero Offset Espag Handle	35mm	L/H						566683
Hero Offset Espag Handle	40mm	R/H	566454	566494	566534	566414	566614	566684
Hero Offset Espag Handle	40mm	L/H	566455	566495	566535	566415	566615	566685
Hero Offset Espag Handle	45mm	R/H						566686
Hero Offset Espag Handle	45mm	L/H						566687
Hero Offset Espag Handle	50mm	R/H						566688
Hero Offset Espag Handle	50mm	L/H						566689
Hero Offset Espag Handle	55mm	R/H						566690
Hero Offset Espag Handle	55mm	L/H						566691
Box Quantity			40	40	40	50	50
Pallet Quantity			2520	2520	2520	2800	2800
