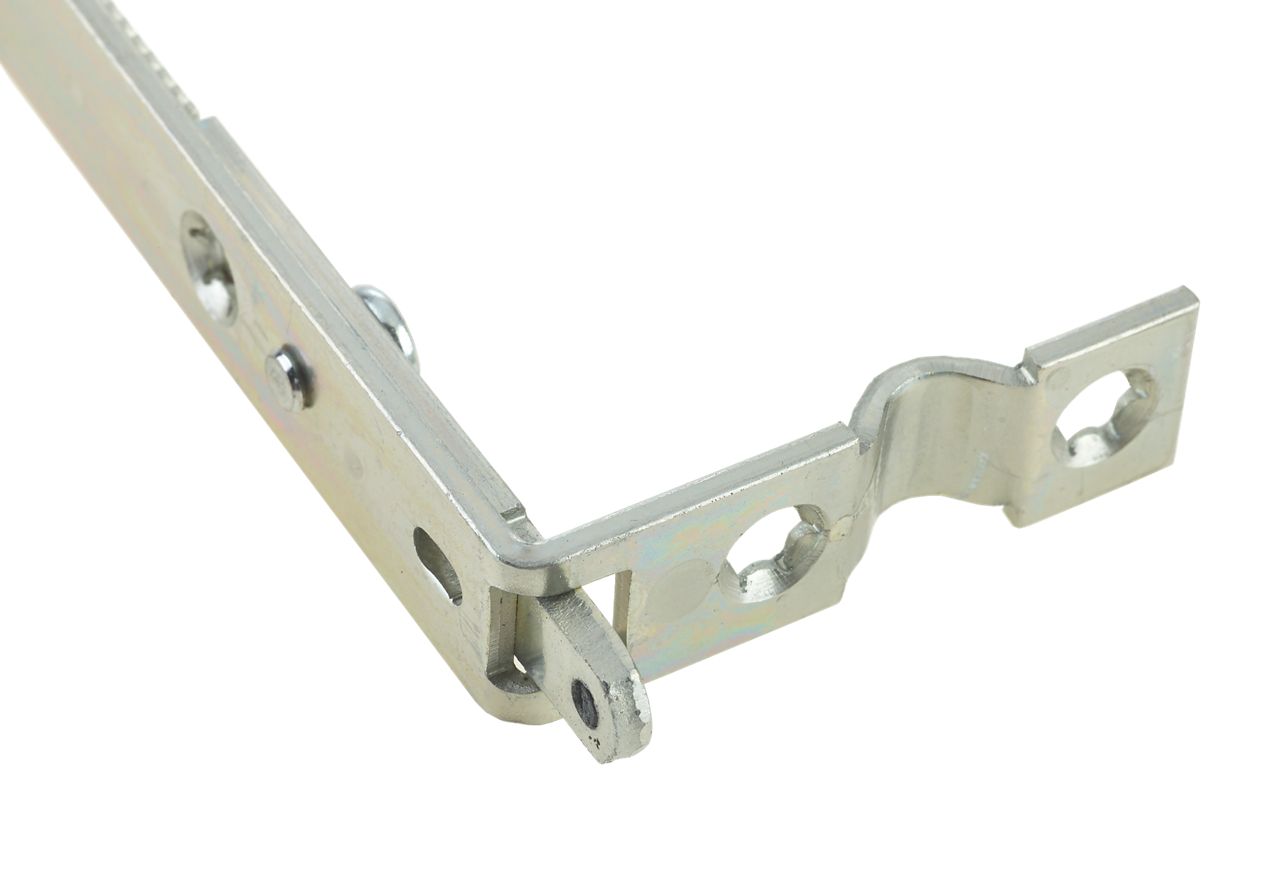

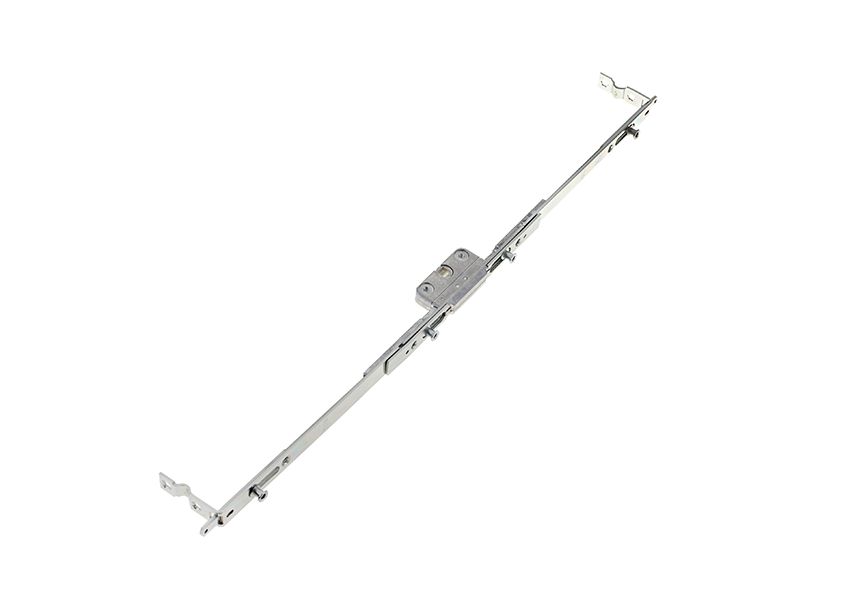

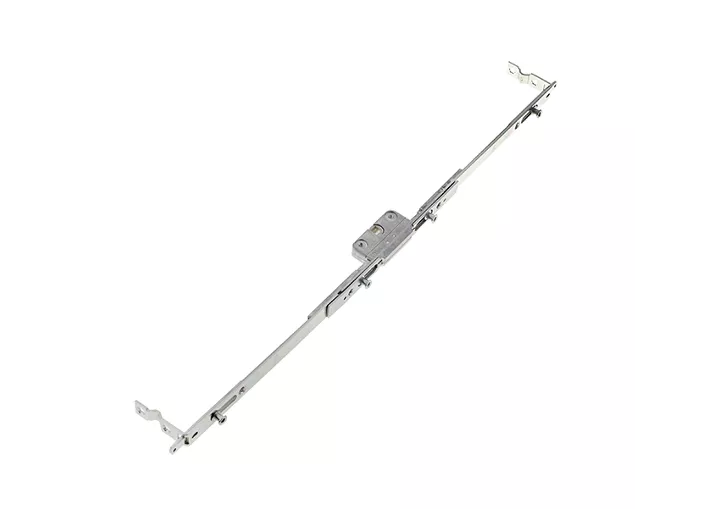

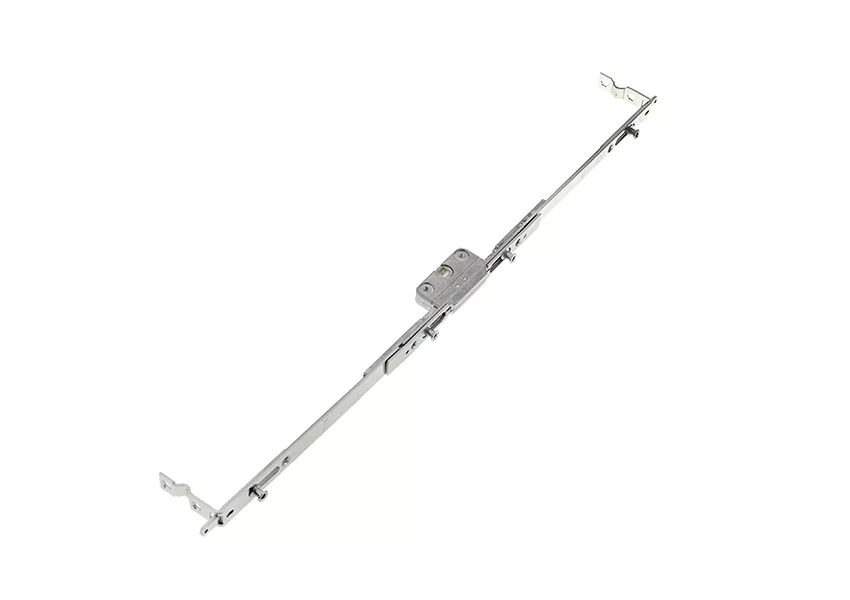

Yale Shootbolt Window Lock

Suitable for use on PVC, Aluminium & Timber window systems and covering all window sizes from 326mm to 1420mm with just 4 rod sizes

Yale Shootbolt window locks offers high security shootbolt performance with a minimum of components. Adjustable mushroom cams offer enhanced anti-separation performance, together with simple compression adjustment.

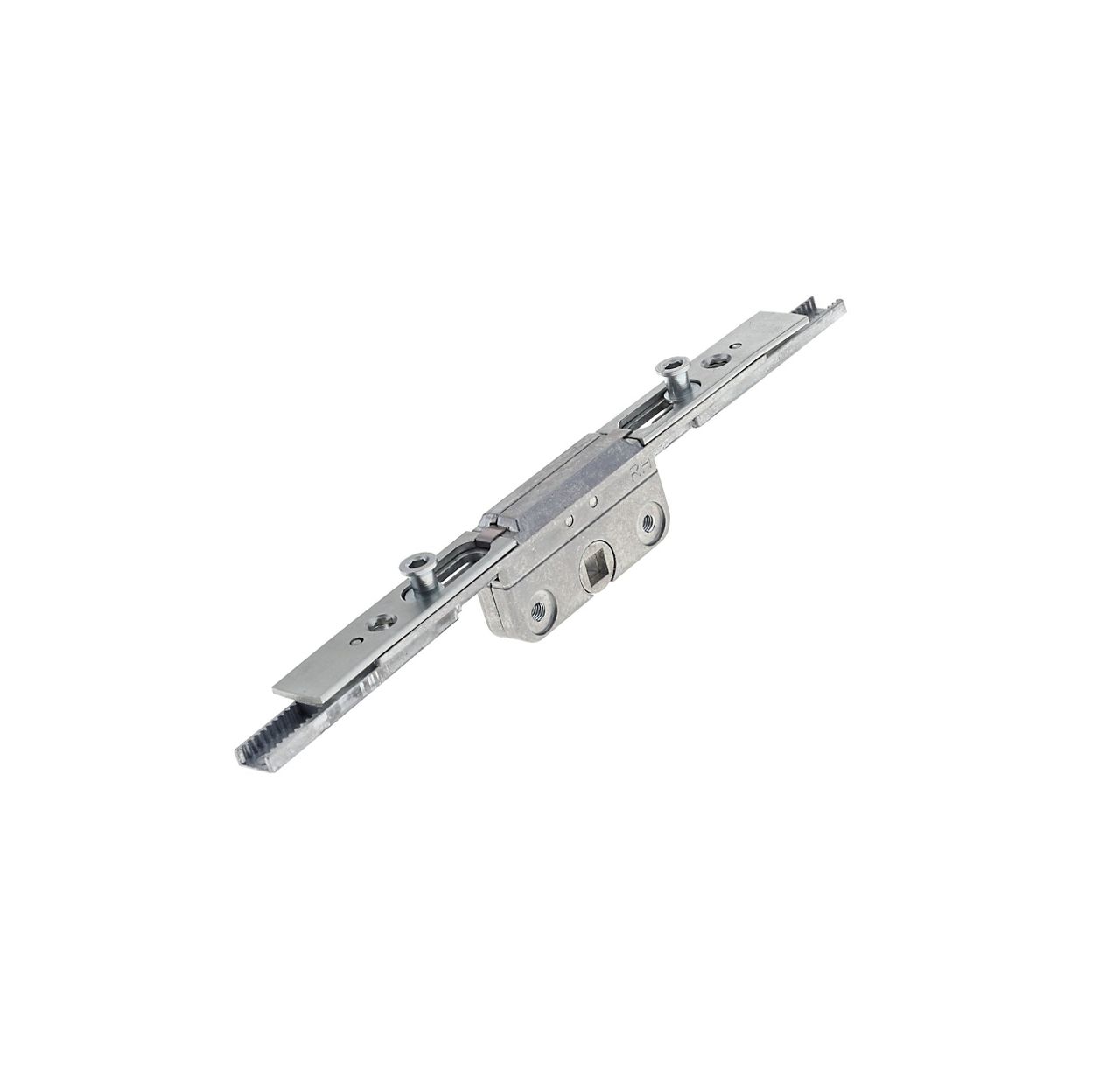

Shootbolt Extendable

Suitable for PVC, Aluminium & Timber window systems and covering all window sizes from 476mm to 1520mm without the need to cut the shoot bolt extensions the non-cropping Yale shootbolt window lock combines high security shootbolt performance with efficient manufacturing. Adjustable mushroom cams offer enhanced anti-separation performance, together with simple compression adjustment. Sash sizes as little as 476mm, can be achieved by using the Yale Shootbolt window lock croppable gearbox.

Features:

• High security shootbolt system
• Available in 'croppable' and 'extendable'

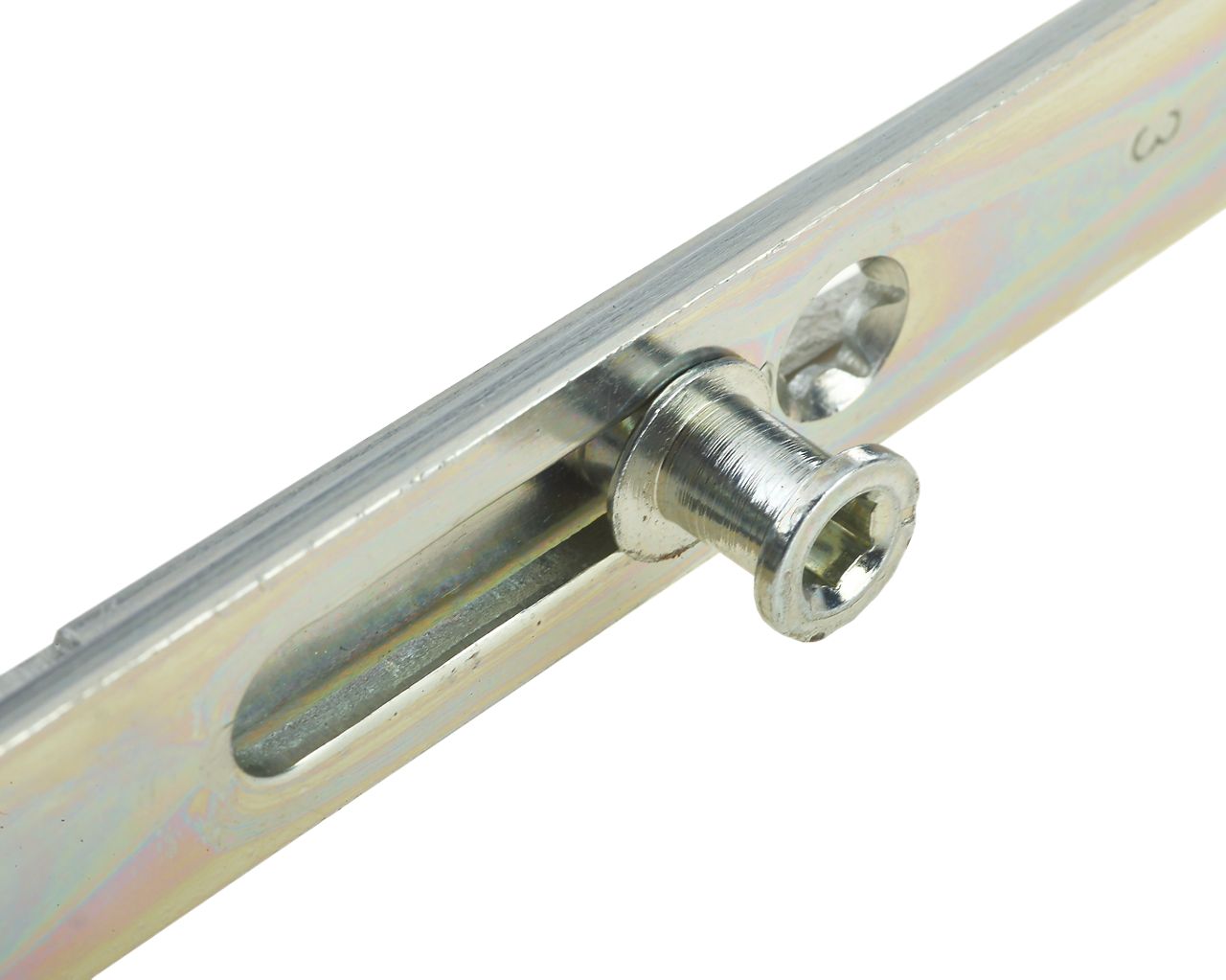

• Adjustable 7.7mm and 9mm mushroom cams
• 20mm and 22mm backsets
• Large array of keeps covering all profiles
• 4 crop-to-fit shootbolt sizes to achieve sash sizes 326mm to 1420mm
• Extendable gearbox and 8 rod sizes to achieve sash sizes 476mm to 1520mm
• Shootbolt Flush Sash options available
• Suitable for use on PVC, Aluminium & Timber

Specifications:

• BBA certification
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles
• PAS 24:2016 compliant
• Designed to achieve PAS 24:2016
