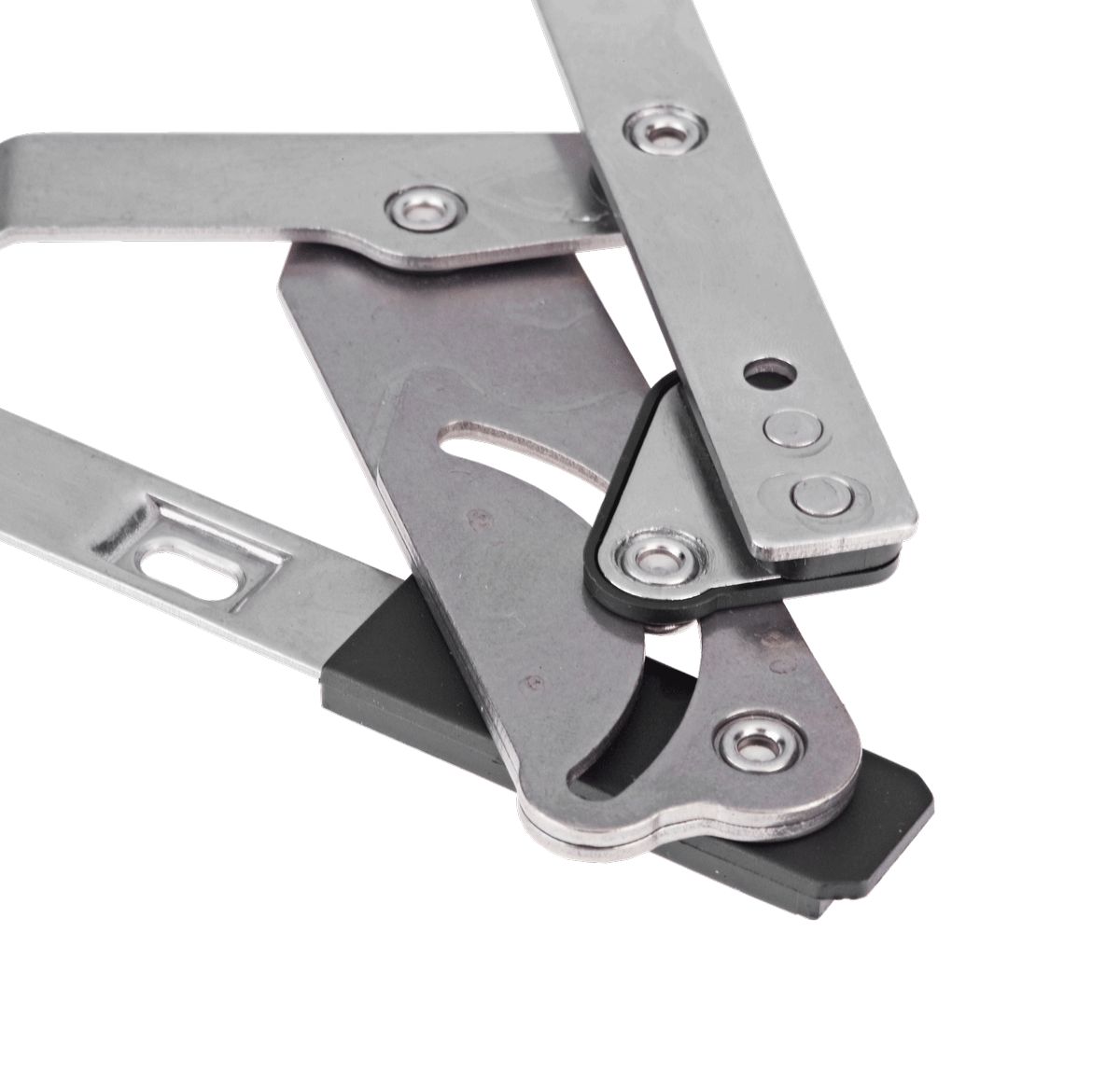

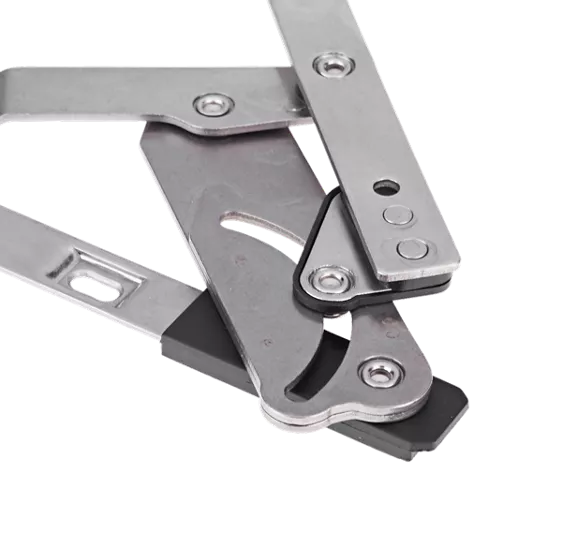

Mega Egress Hinge
Engineered for side-opening casement windows, the Yale Mega Egress Hinge combines strength, safety, and convenience. Its robust design supports sash widths up to 900mm with a maximum load of 35kg, making it ideal for a wide range of applications.
The innovative Easy Clean feature lets the sash slide away from the corner for effortless cleaning and automatically returns to egress mode for complete safety.
Key Features:
- Available in 220mm and 345mm sizes to fit side-hung windows up to 600mm and 900mm sash widths.

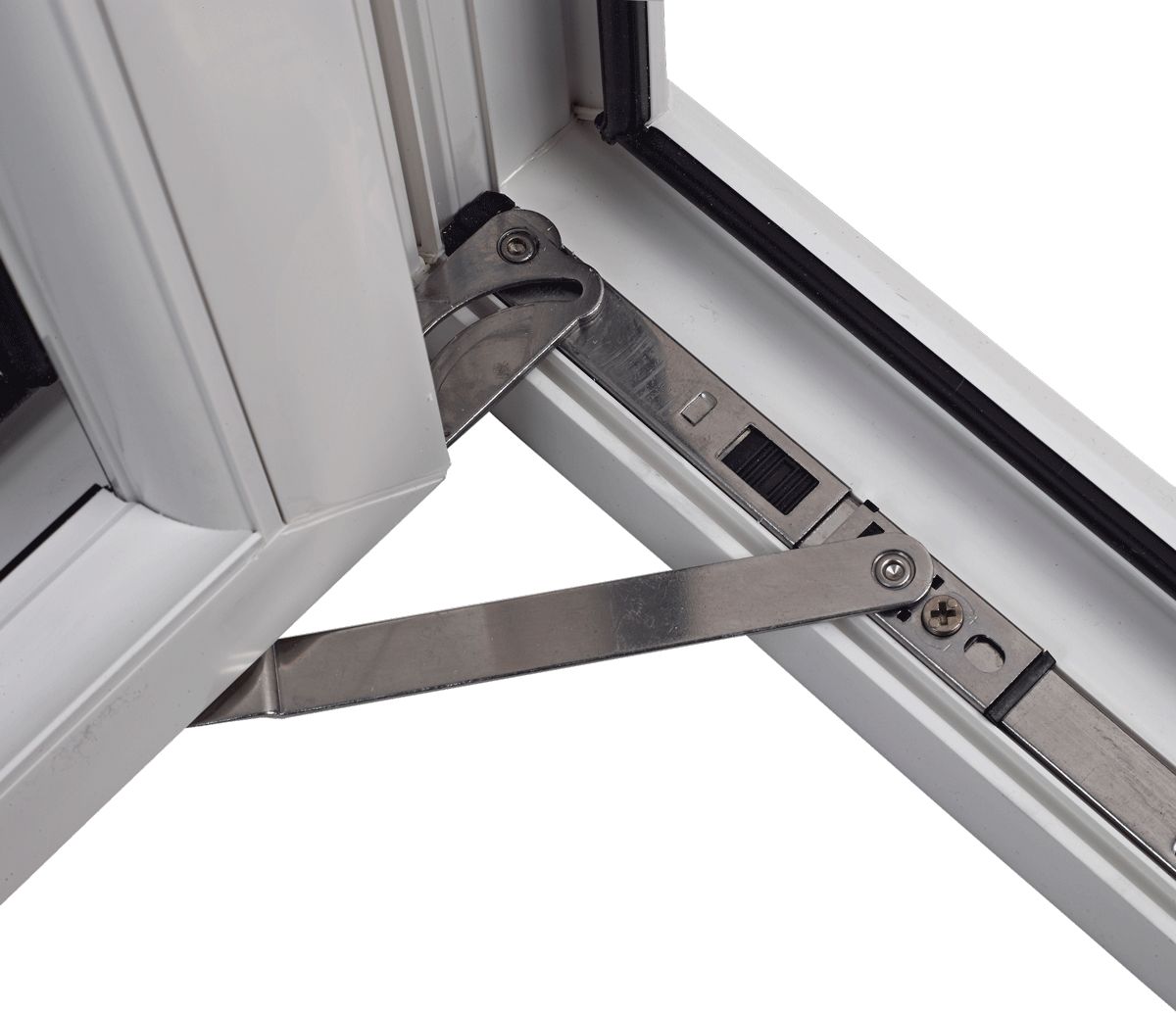

- Opens the sash outside the frame to maximise escape aperture.

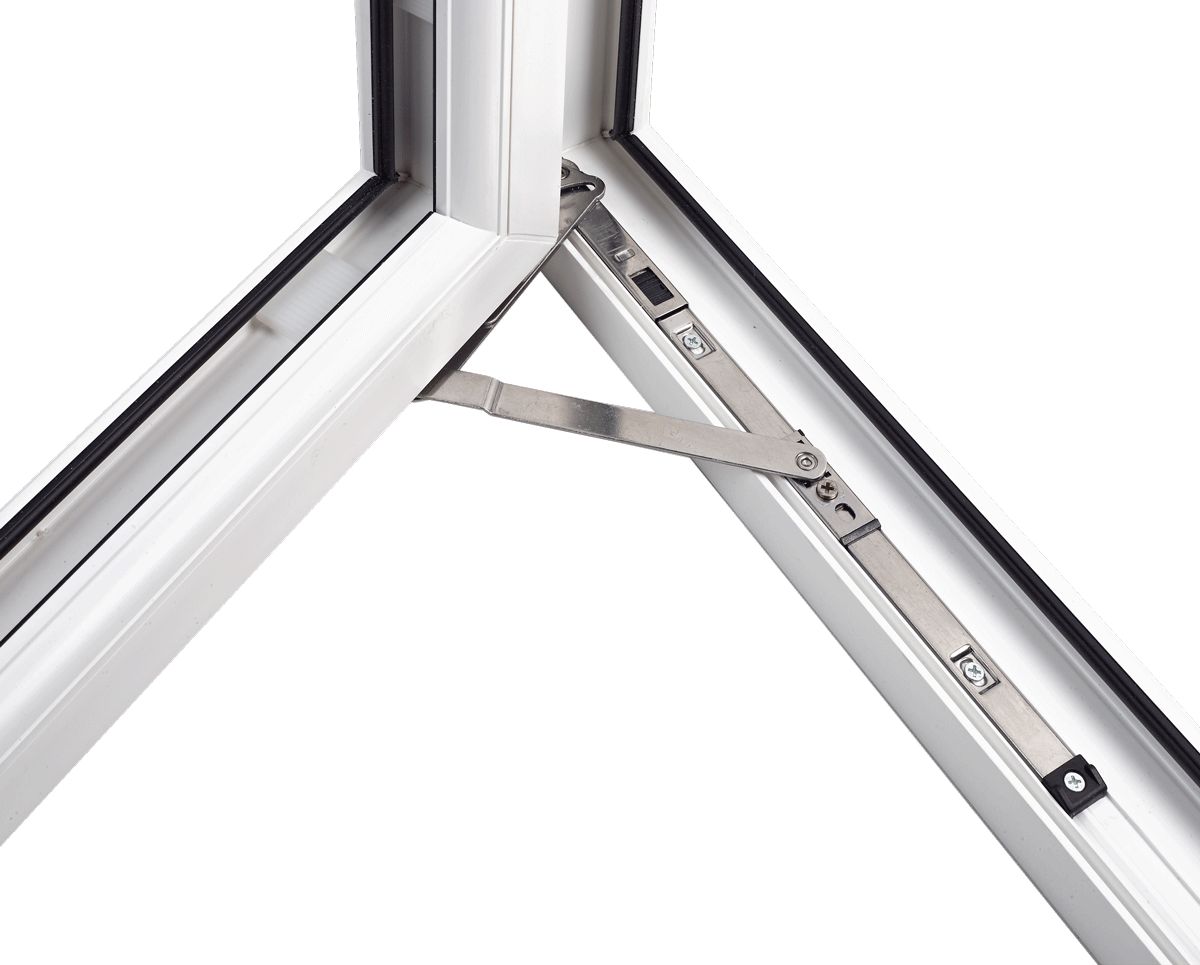

- Provides true 90º opening for egress compliance.
- Meets minimum fire escape requirement of 450mm on smaller windows - exceeding traditional egress hinge performance.
- Easy Clean functionality with automatic reset to egress operation (345mm version).

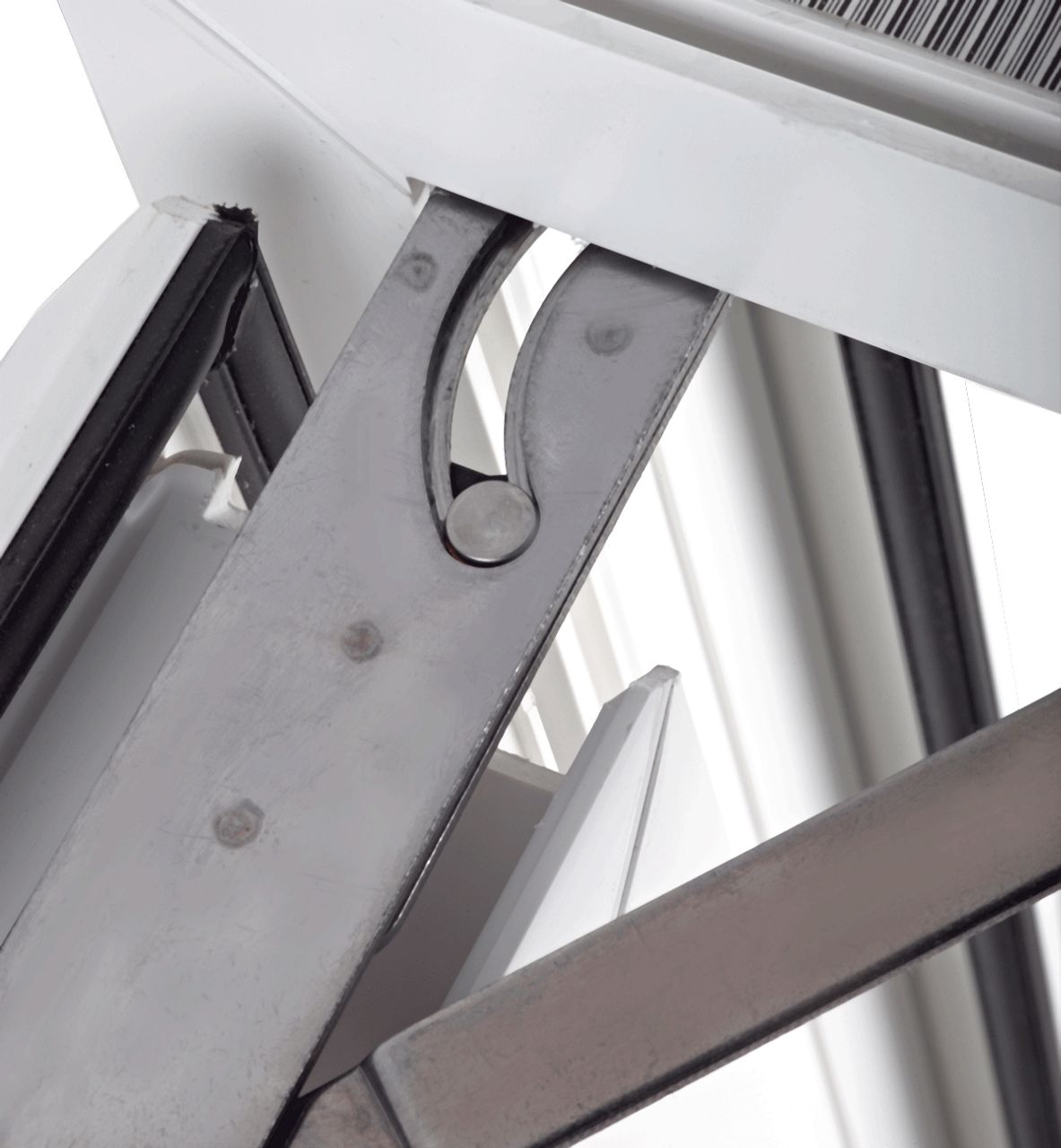

- Patented hinge geometry delivers excellent compression and superior load-bearing capacity.
Technical Specifications:
- Tested to BS EN 1670 Grade 5 for outstanding corrosion resistance.
- Endures 30,000+ operational cycles under load:
- 800mm wide x 40kg
- 900mm wide x 35kg
- Designed to meet PAS 24 security standards when paired with Yale ASD.
- Backed by a 10-year mechanical guarantee.
)
Part Number: Class: Description: 028500 B Mega Egress Stay 8" 13.5mm ST/HT 028502 B Mega Egress Stay 13" 13.5mm ST/HT 028510 C Mega Egress Stay 8" 16.5mm ST/HT 028512 B Mega Egress Stay 13" 16.5mm ST/HT
