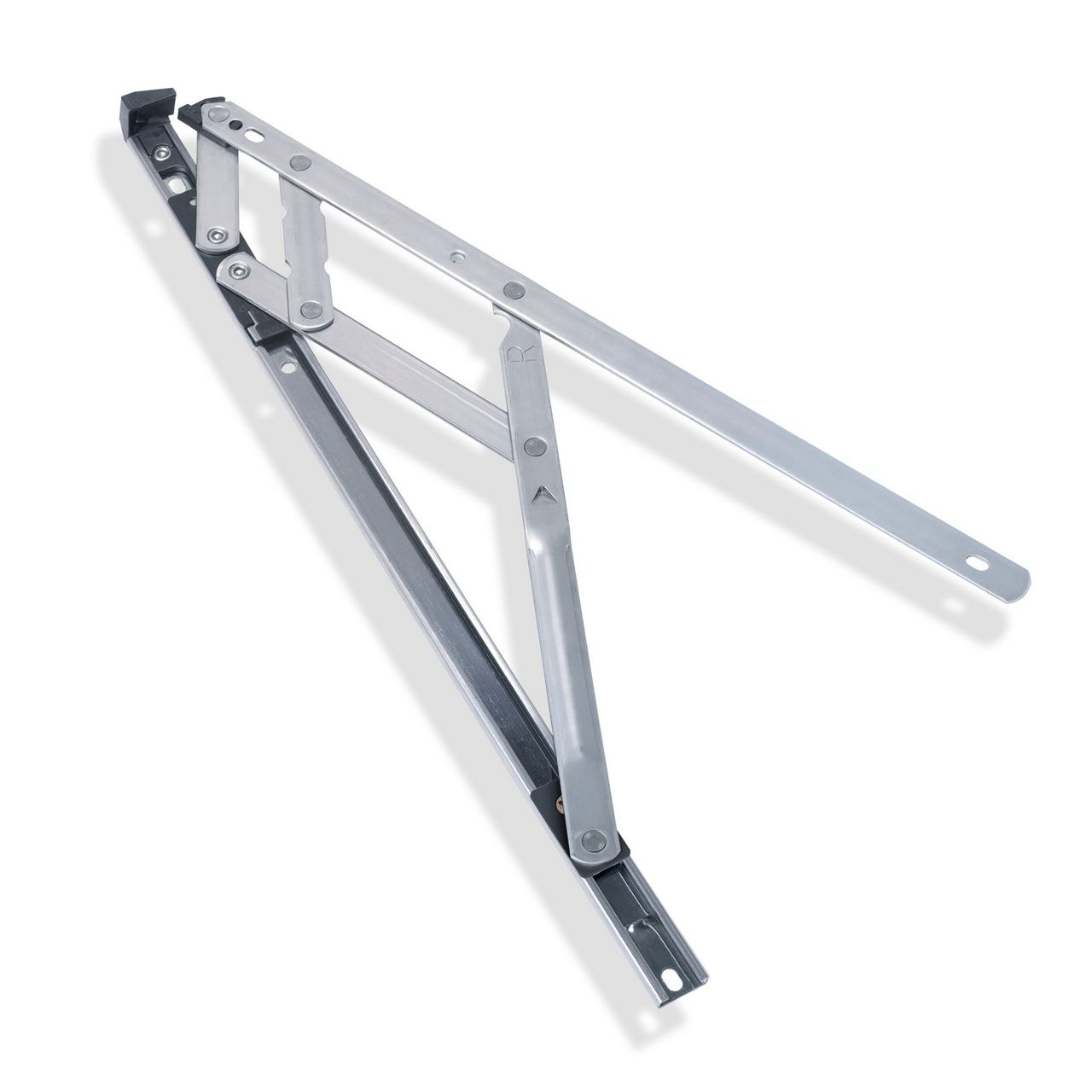

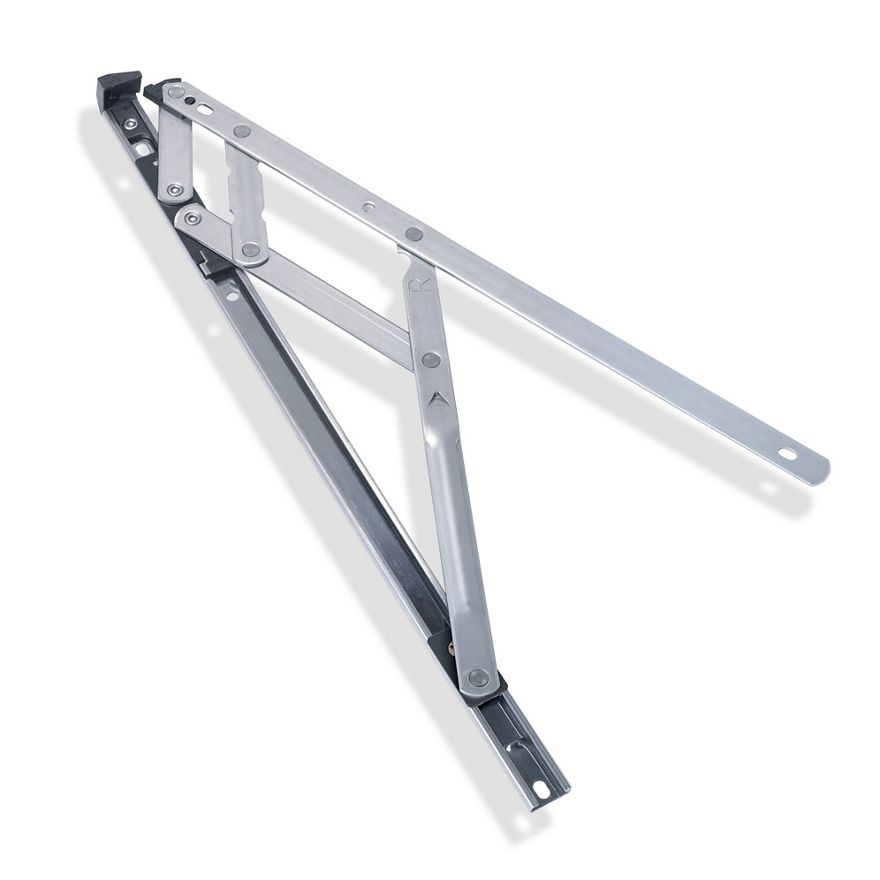

Yale Defender Egress

Defender Egress designed for emergency exit with the benefit of easy clean facility.

Features

• 16" hinge opens to a full 90° for emergency exit
• Self-lubricating PTFE based coating on the end cap to provide a smooth closing

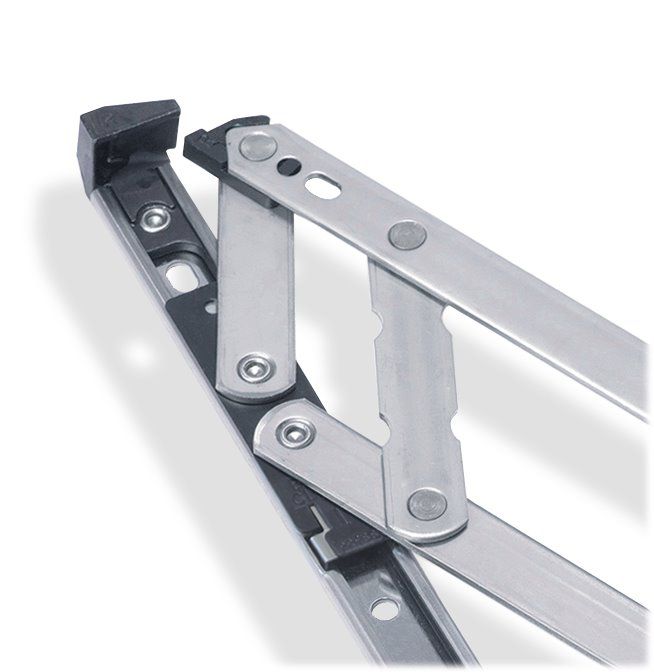

• Composite slider with stainless steel release lever mechanism allows cleaning access from the inside of the building
• Automatically resets to the fire escape mode when the window is closed
• Die cast support plate in the bottom slider ensures consistent performance
• Available in 12" or 16" for side hung windows
• Drilling jigs for all sizes are available to order
• Screw fixing in the centre of the track to reduce vent drop
• Compliant with Building regulations approved document B1
• Casement to provide an unobstructed area that is at least 0.33m² with minimum size of 450mm in any one direction
• Minimum clear opening of 450mm x 734mm at maximum sill height of 1.1m

Specification

• 10 or 12 year Mechanical Guarantee*
• BS 5588-1 Fire precautions in the design, construction and use of buildings
• BS 8213-1 Design for safety in use and during the cleaning of windows
• Endurance tested to 30,000 cycles
• Corrosion tested to a minimum of 96 hours
• BBA certification
• Secured by Design approved

* 10-year Mechanical Guarantee for Standard Ferritic and 12-year Mechanical Guarantee for Austenitic Stainless Steel
