Mila Pin Panic Lock

Combines enhanced security with emergency exit technology for both single and double doors

Features

• Multipoint locking system
• 2 pins and deadbolt for security
• Pins throw 20mm
• Reversible latch to suit both left and right handed doors
• Anti-saw deadbolt
• Panic bar
• Tested and certified to EN 1125, European standard for Panic Exit Devices
• BS EN 1125 classification: 37601322A
• Kits available for both single and double doors
• Suitable for use on PVCU, timber and aluminium doors
• Internal operation via panic bar
• Panic bar finished in exit green
• External access kit available
• For all applications door will always open from inside to allow emergency egress

MATERIAL SPECIFICATION

Single Doors Rebate Size

Minimum Width 700mm

Maximum Width 2400mm

Double Doors Rebate Size

Minimum Width 1600mm

Maximum Width 2400mm

Single Door/Primary Leaf Specification

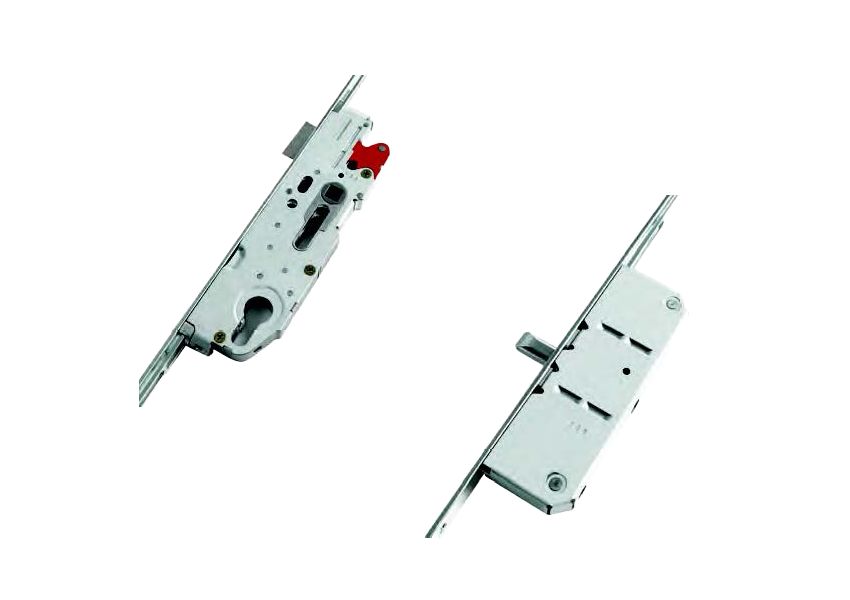

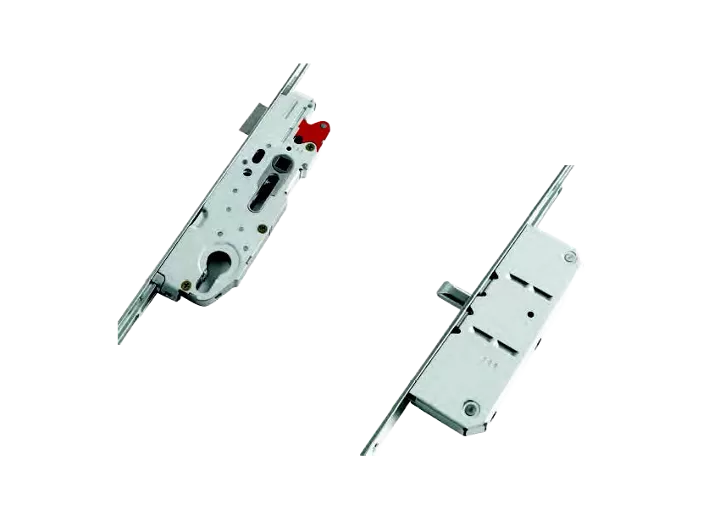

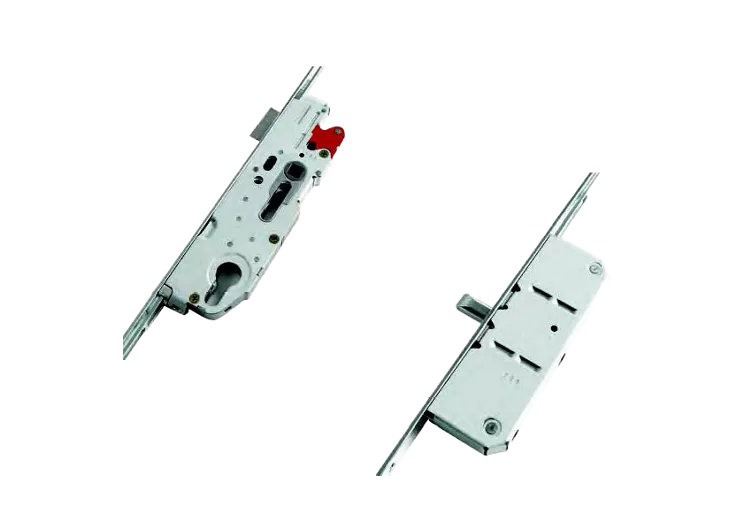

35mm backset multipoint lock featuring 2 pins with 20mm throw, reversible latch and deadbolt

Secondary Door Specification

35mm backset secondary door lock with shootbolts top and bottom
