ProSecure Pace Door Hinge

With sub-40 second fitting times achieved under test conditions, the ProSecure Pace Security hinge has been designed to speed up door fabrication without compromising on quality and aesthetics.

An innovative frame datum allows consistent repeatability and precise fabrication on the factory floor. Making no contact with the profile, the hinge slides directly onto the frame datum - eliminating any risk of damaging the profile.

The auto-locking hinge cover prevents access to the fixing screws and locks the steel hinge pin in place. For onsite adjustment, handing LH or RH, or to remove the pin for fitting in tight reveals, a concealed push button simply releases the cover

Independently tested.

Tested to PAS 24:2022 for enhanced security, endures extreme corrosion resistance tested to BS EN 1670 Grade 4 for plated and Grade 5 for painted finishes, 200,000 cycles under load, and supports heavy-duty doors up to 100kg. Approved by Secured by Design.

Features

  • Colour Matched Caps offer seamless styling
  • Compression Adjustment +/- 1mm
  • Frame Datum large surface area ensures a secure stable fit
  • Auto-locking Feature automatically locks the cover - no need for additional screws
  • Lateral Adjustment +/- 5mm
  • Captive Hinge Lid pivots open and closed for easy installation
  • Lateral Adjustment Lock/Unlock to prevent adjustment creep
  • Height Setting Clip ensures the hinge is installed in the correct position - remove before closing the cover
  • Height Adjustment + 5mm





14 colour options.

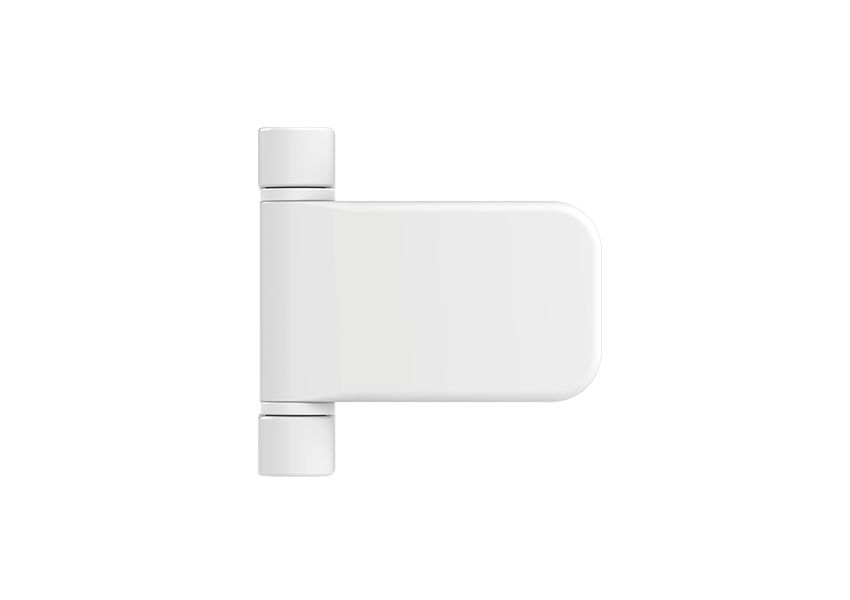

  • White

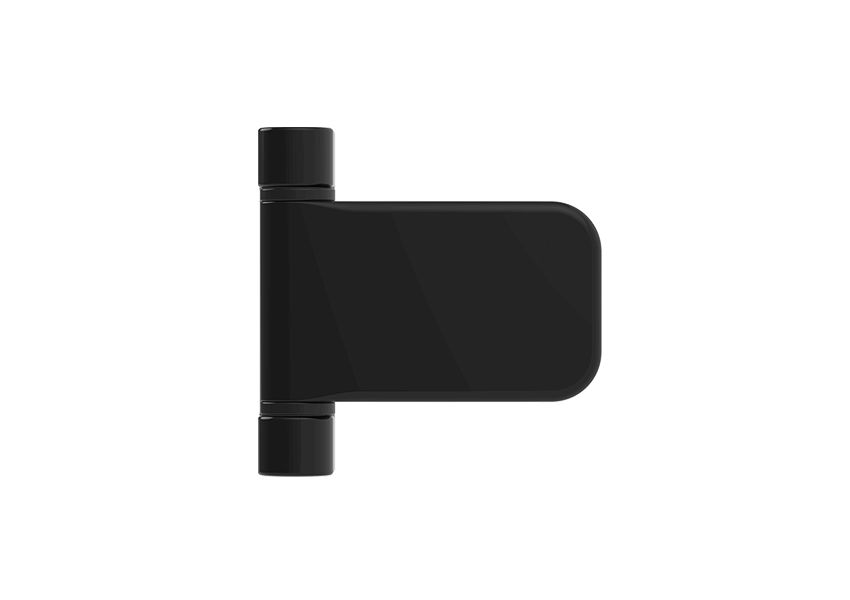

  • Black

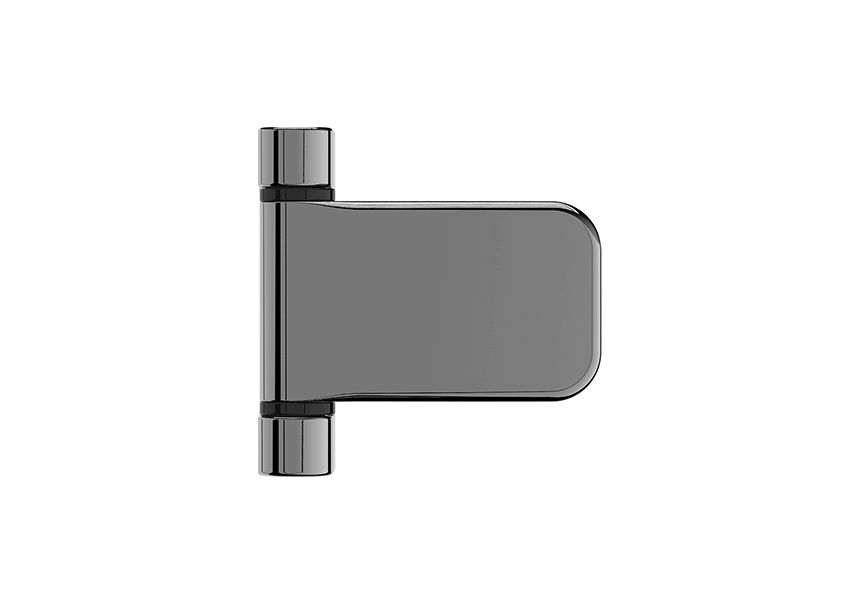

  • Smokey Chrome

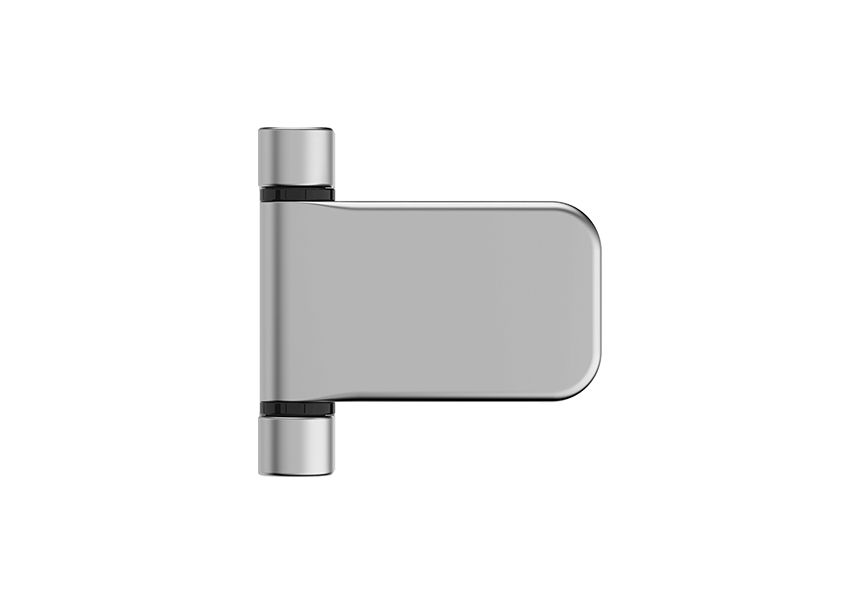

  • Smooth Satin

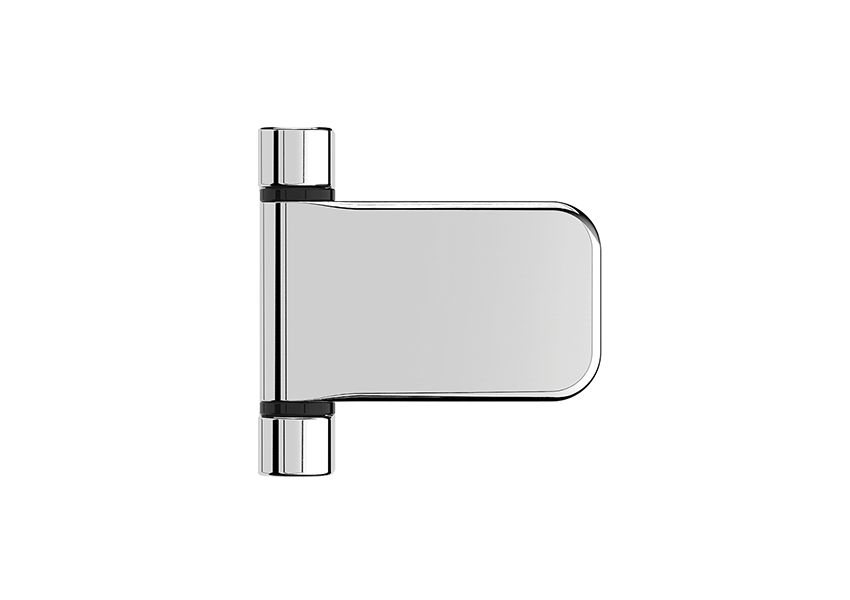

  • Chrome

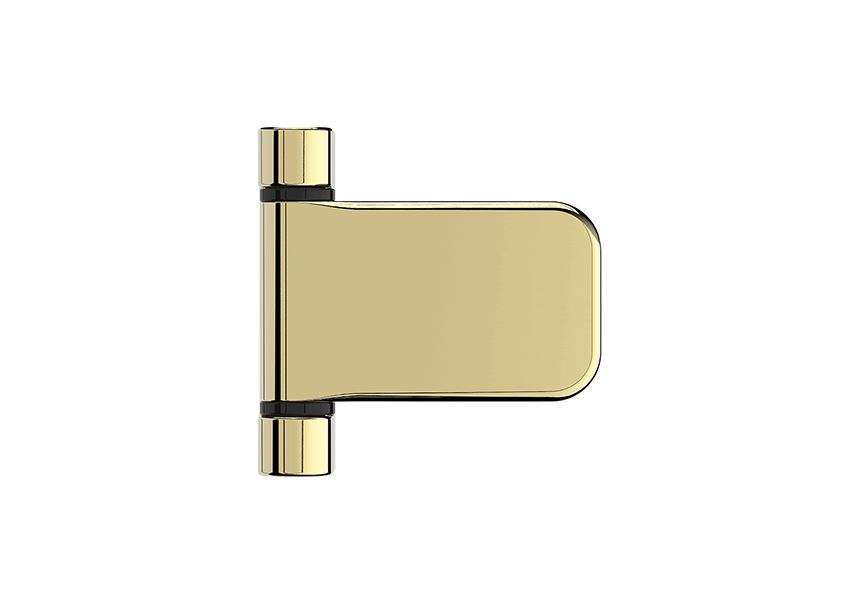

  • Polished Gold

  • Heritage Black

  • Anthracite Grey

  • Agate Grey

  • Light Oak

  • Brown

  • Irish Oak

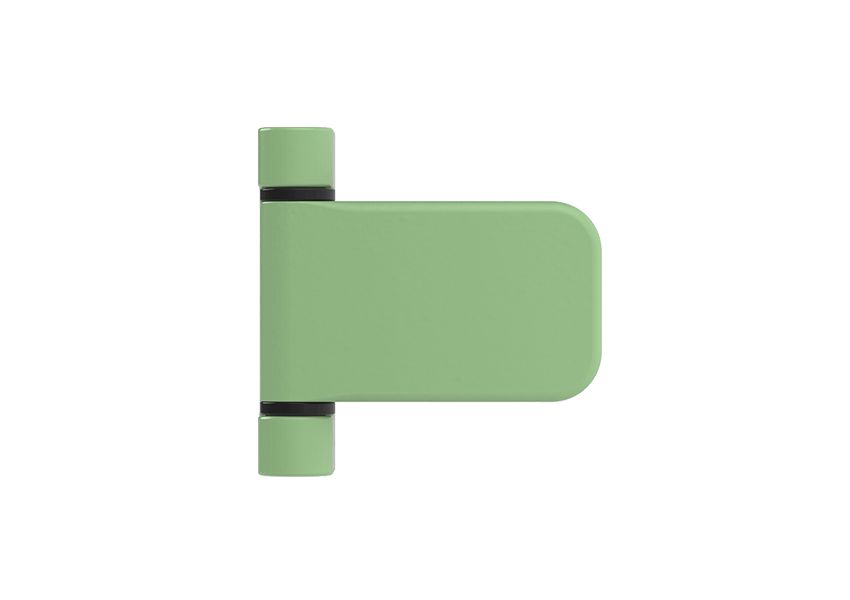

  • Chartwell Green

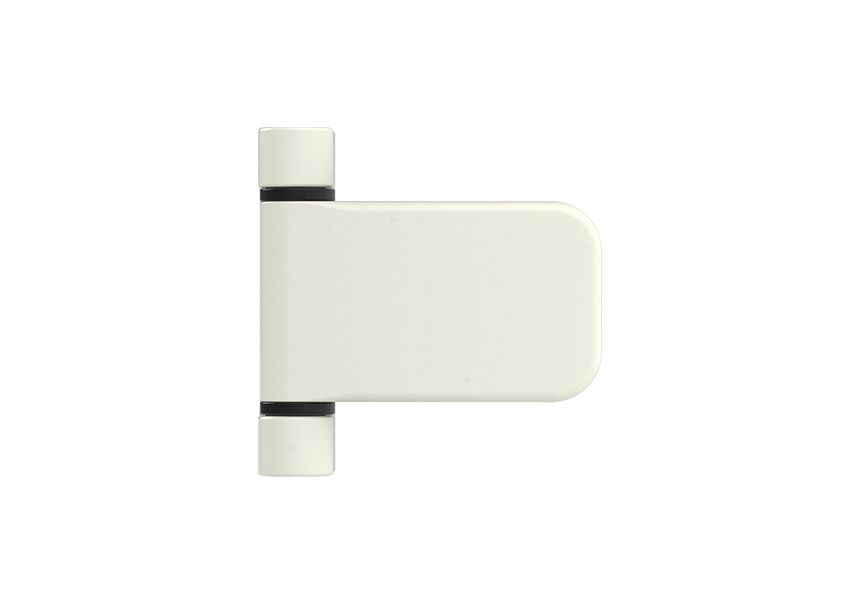

  • Cream

1 of 14
