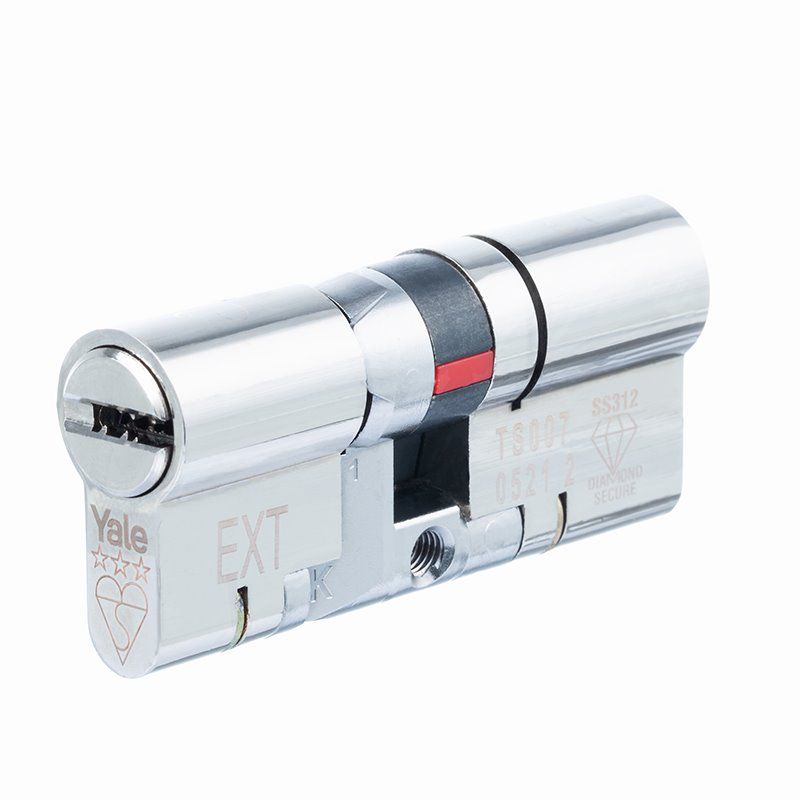

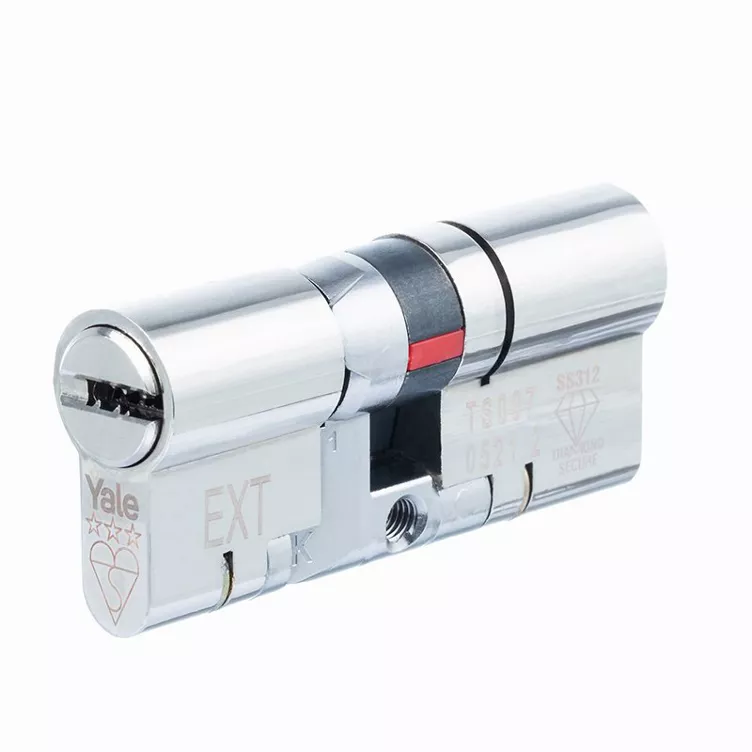

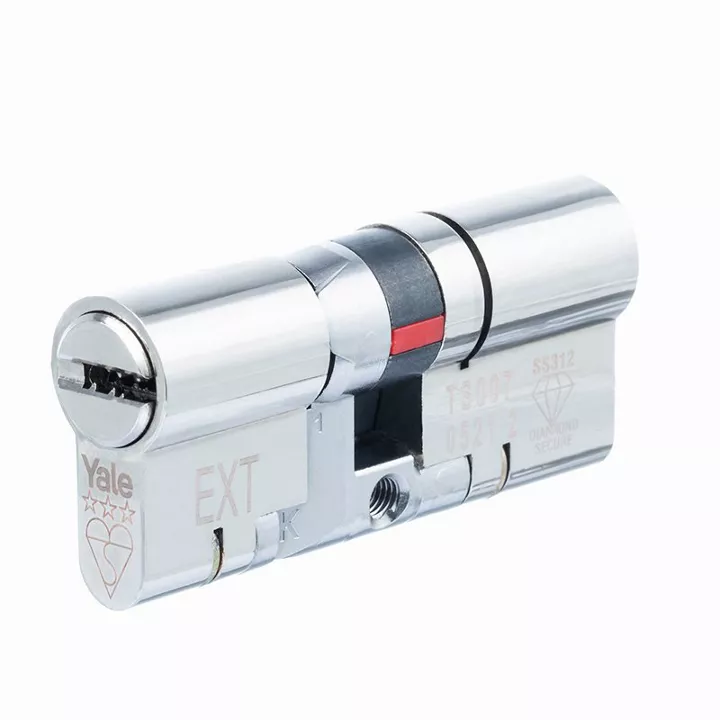

Platinum 3 Star Euro Profile Cylinder

The Yale Platinum Euro Profile cylinder is a TS007 3 Star Kitemarked Anti-Snap security product to provide maximum security against known attack methods.



The Platinum 3 Star cylinder is independently tested by BSI to be awarded the British Kitemarked TS007:2014 3 Star accreditation.

Specification

  • TS007-1:2014+A2:2018 3 Star accredited.

  • KM559658
  • BS EN 1303:2015 approved
  • Anti-snap sacrificial front section
  • Anti-Pick, Anti-Bump, Anti-Pull, Anti-Drill, Anti-Screw
  • BSI approved re-pinning available with kitemark accreditation
  • Euro retrofit cylinder
  • 10-year Mechanical Guarantee
  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Endurance tested to 50,000 cycles

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Features

  • Superior strength with cylinder stability system

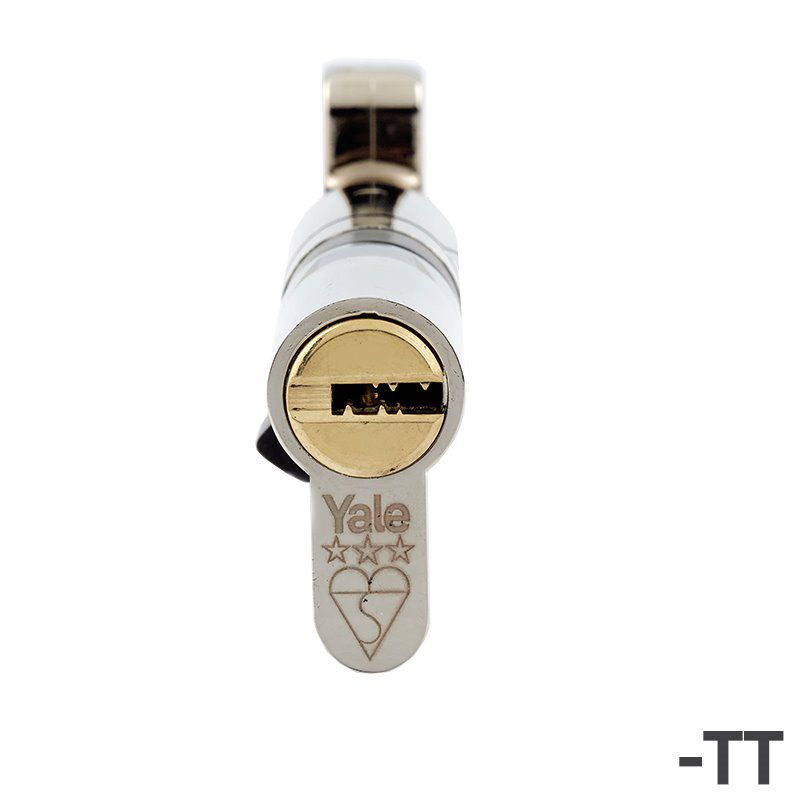

  • Horizontal keyway

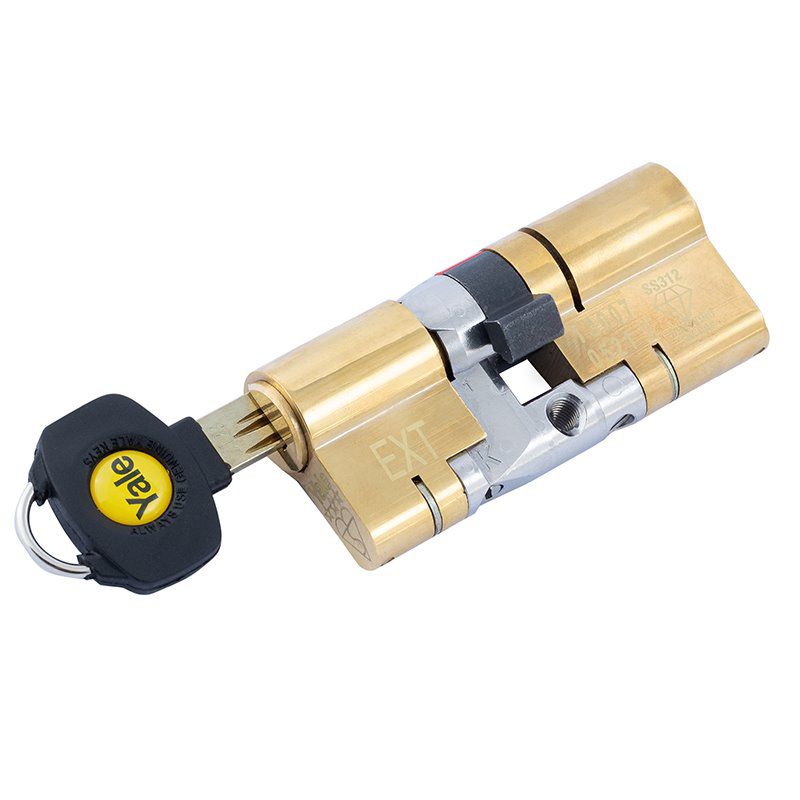

  • Flat reversible dimple key with stylish new Yale branded key bow

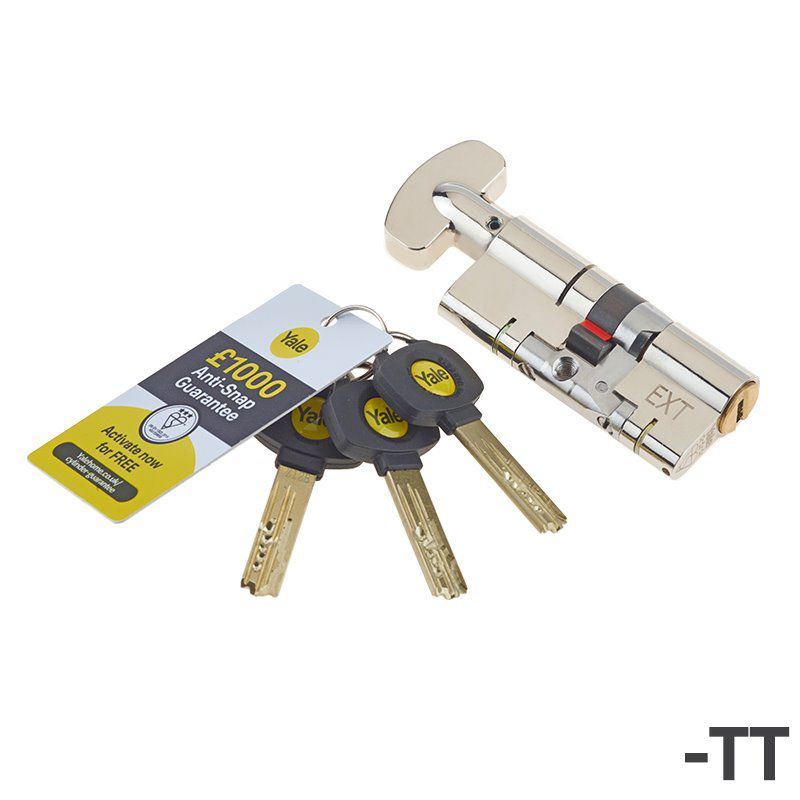

  • Key card for easy code identification and duplicate key ordering

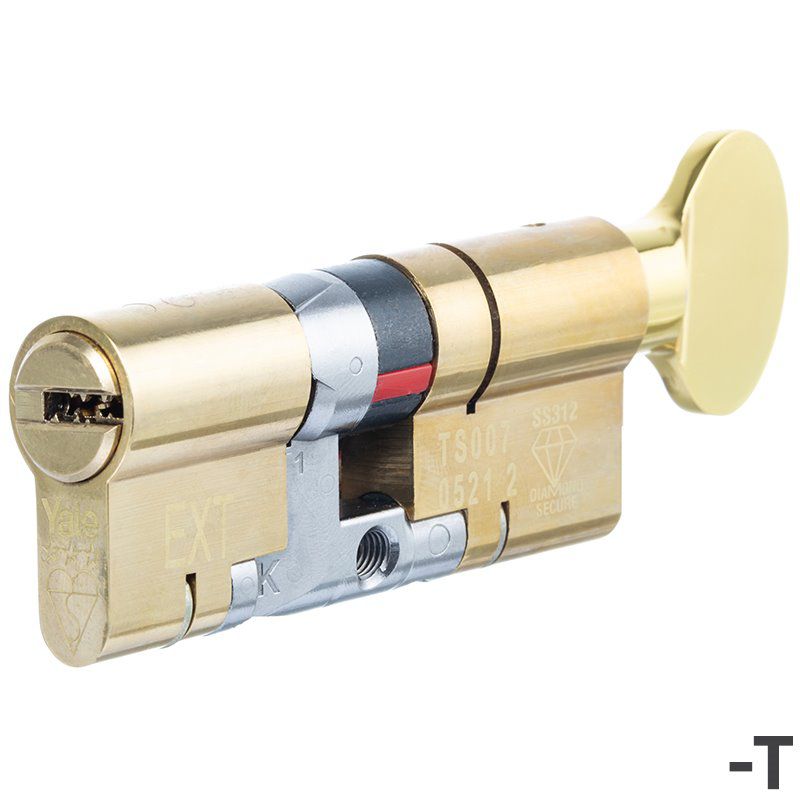

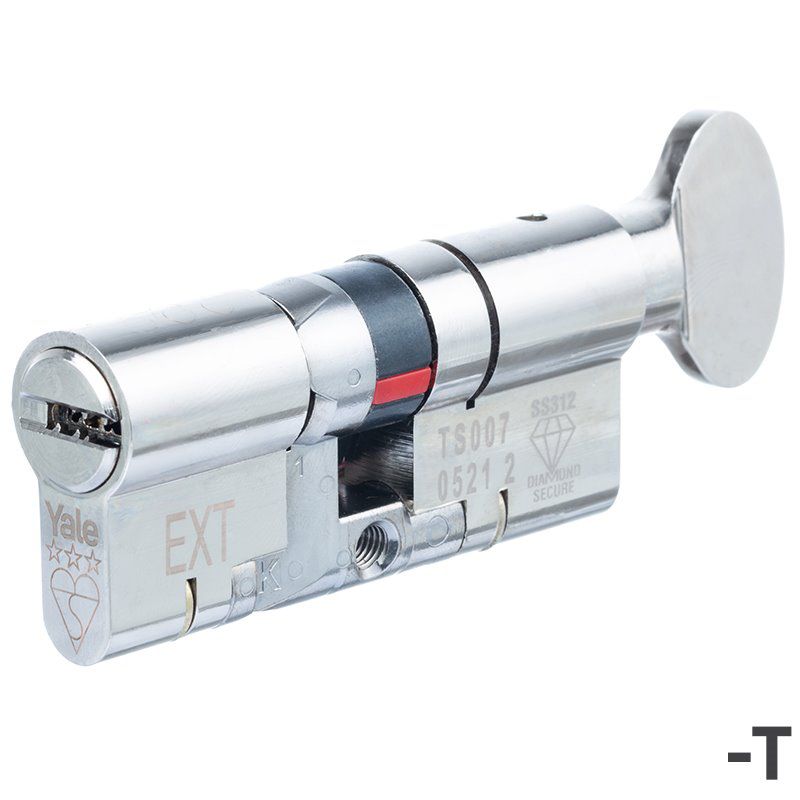

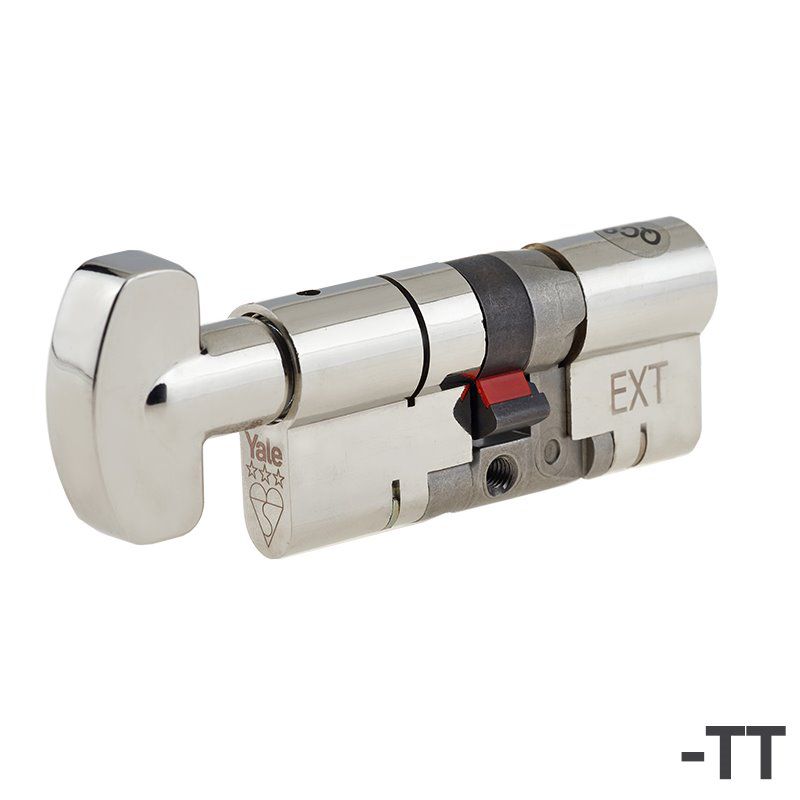

  • Available in single, double and thumbturn variants
  • Available in Brass, Nickel and Black finishes
  • Order spare keys from yalestore.co.uk

TS007:2014

TS007 is a standard developed in response to concerns over cylinder attacks. The standard is characterised by a 3 star rating system, and can be achieved by combining a 1 star cylinder with a 2 star security door furniture or using a standalone 3 star cylinder. The Platinum series cylinder is approved to TS007 3 stars and does not require any additional security furniture.



Maintenance and care of your Yale cylinder

Yale recommend regular lubrication of your Yale cylinder locks to ensure continuous trouble free performance and operation.

For this we recommend using a PTFE based lubricant. A small amount of lubricant should be applied to the key and then inserted into the cylinder.  Rotate the key  a couple of times in line with the normal locking function.  Remove the key from the cylinder and wipe away and remaining lubricant  to ensure it isn’t transferred onto other objects.
