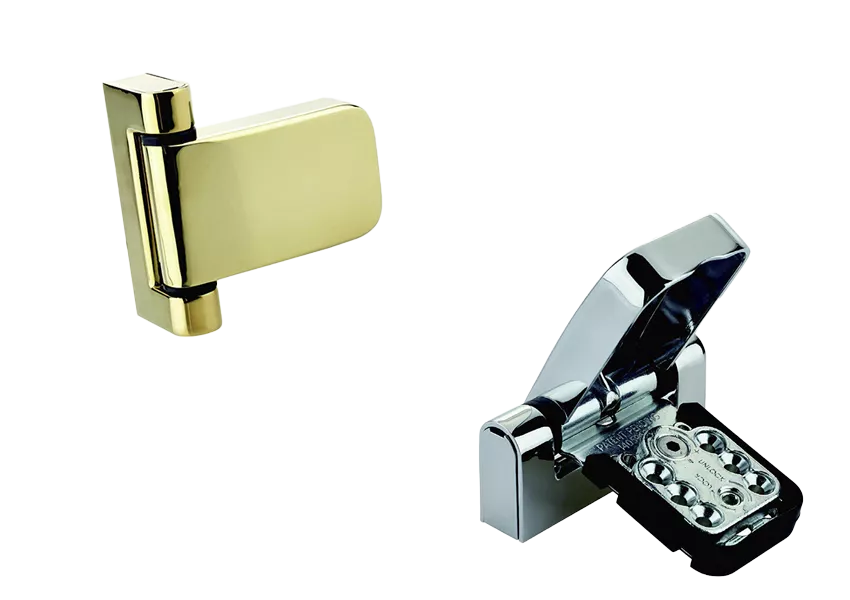

ProSecure Door Hinge

This ProSecure enhanced security door hinge is faster to than any other security door hinge on the market.

The only hinge supplied in one piece ready to fit straight from the box, the ProSecure hinge can be fitted in less than a minute - proven in time trials under test conditions.

Glider technology enables the whole hinge to slide straight onto the frame in one complete piece. Virtually jigless, it only needs two holes to be pre-drilled in the frame and, once in place, the captive sash lid pivots open to allow the concealed fixing datum to be screwed directly to the sash.

For doors being fitted into low reveals, the ProSecure hinge can also be front fitted just as quickly, simply by removing the steel hinge pin.

Static-cling TechTape protects the hinge lid during fabrication and installation.

Extreme performance tested to...

BSEN 1670:2007 Grade 5 for extreme corrosion resistance

BSEN 1935:2002 Grade 12 for extreme durability achieving 200,000 cycles under load

100kg sash weight for heavy duty doors

PAS 24:2016 for enhanced security

Police preferred specification - Secured by Design approved

Features

Supplied Fully Assembled ready to fit, straight from the box

2 Installation Options slide-on or front fit

Virtually Jigless only 2 holes to pre-drill

Patented Adjustment Technology rotate your Allen key 90° to achieve +/-5mm lateral adjustment. Lock into place to prevent creep.

Full 3D Refinement vertical (+5mm) and compression (+/-1mm) adjustment

Captive Hinge Lid pivots open and closed for easy installation

13 colour options.

  • Polished Gold

  • Polished Chrome

  • Smooth Satin Chrome

  • Smokey Chrome

  • Black

  • White

  • Light Oak

  • Brown

  • Chartwell Green

  • Anthracite Grey

  • Silk Grey

  • Cement Grey

  • Cream
