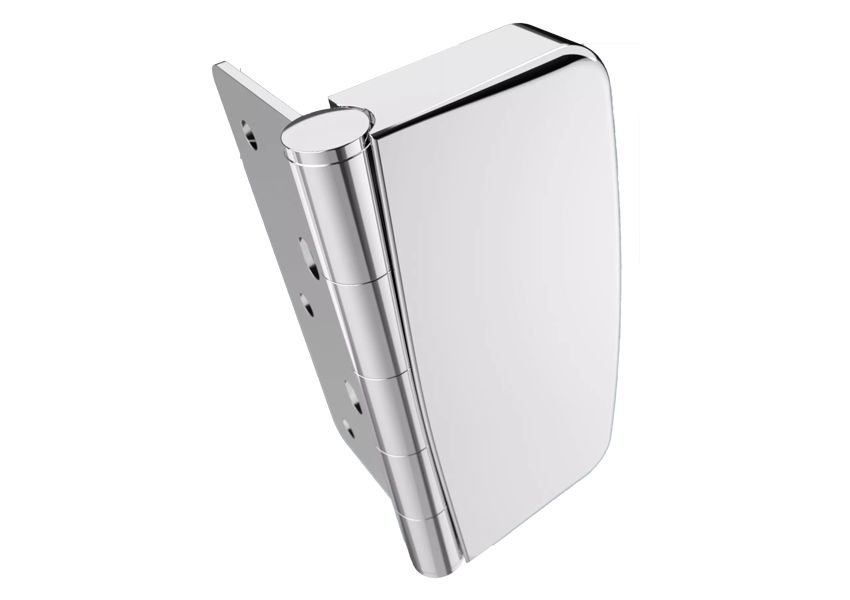

Evolution Door Hinge for Composite Doors
Enhanced security door hinge. Robust design with subtle sightlines, available in 8 finishes.
Features
- 3 dimensional adjustment - lateral (+/- 4mm), vertical (+4mm) & compression (+/-1mm) for easy installation
- Adjustment achieved with an Allen key without the need to dismount the door leaf
- 3 main components including frame part, sash part & sash cover
- Infill pieces available for use on ovolo & chamfered profiles
- Steel hinge pin for added strength, held in place with security grub screw
- Weather resistant - tested to 480 hours salt spray
- Tested to the operational performance and enhanced security requirements of PAS 024
- Meets the Police Preferred Specification requirements of Secured by Design
- Cycle tested to 100,000 cycles, more than twice the industry requirement
- Tested to BS EN 1935 - the European standard which specifies requirements for single-axis hinges for windows and doors opening in one direction only, whose rotation axis is no more than 30 mm from the face of the sash or door.
10 Finishes

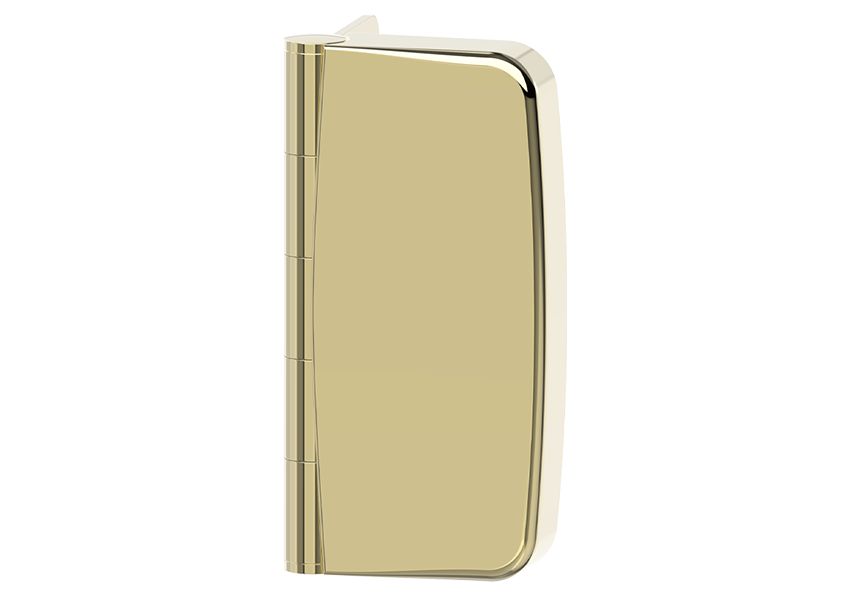

Polished Gold

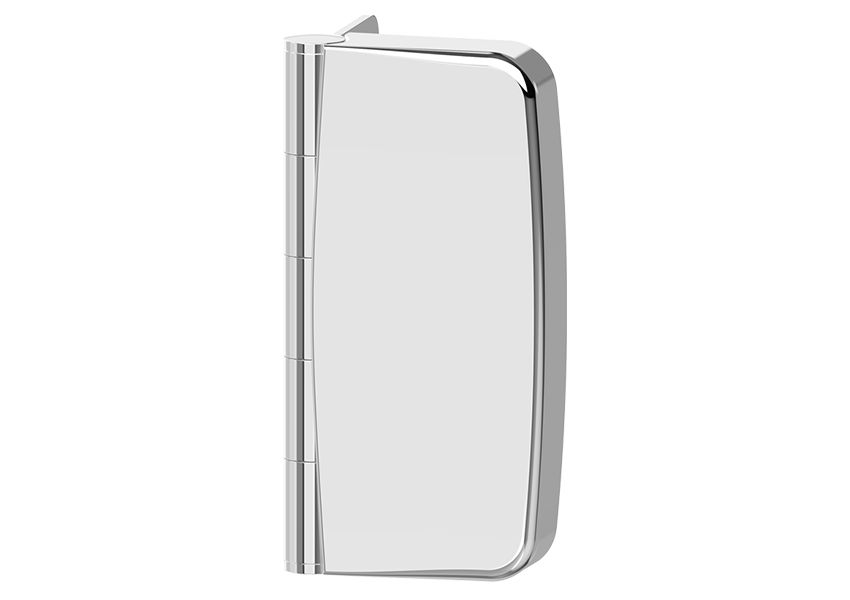

Polished Chrome

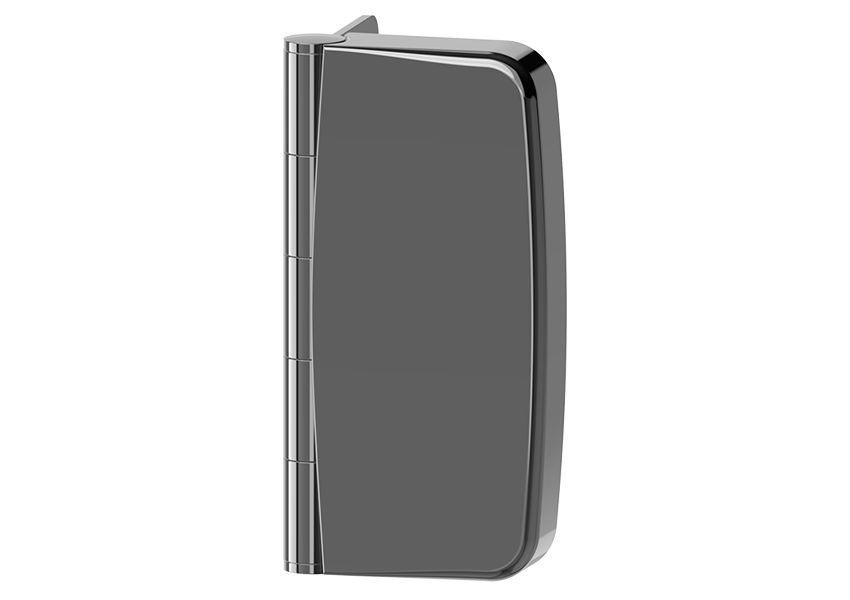

Smokey Chrome

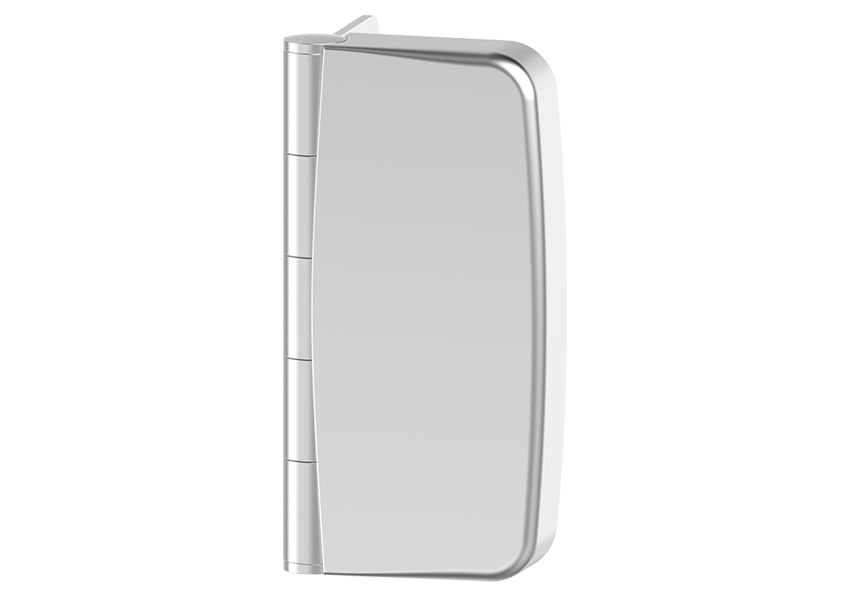

Smooth Satin

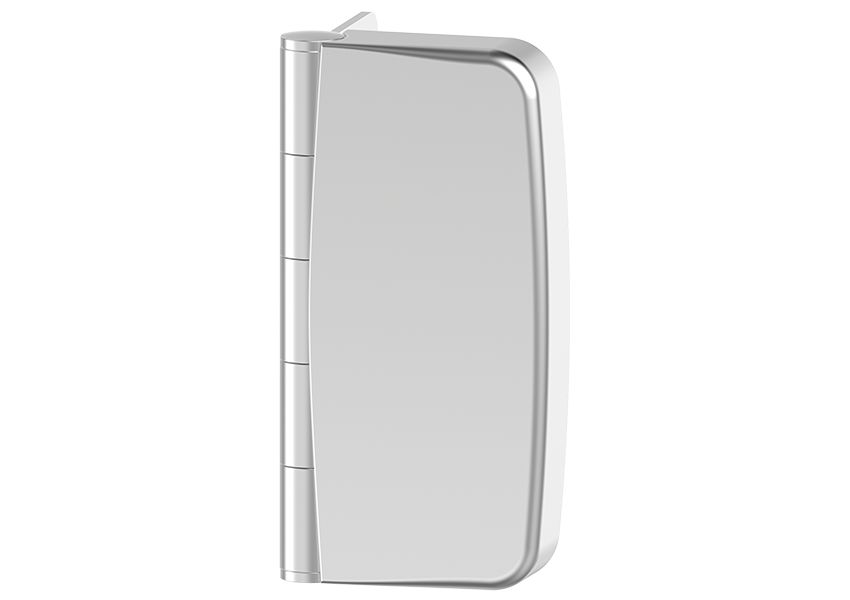

Satin Silver
Black

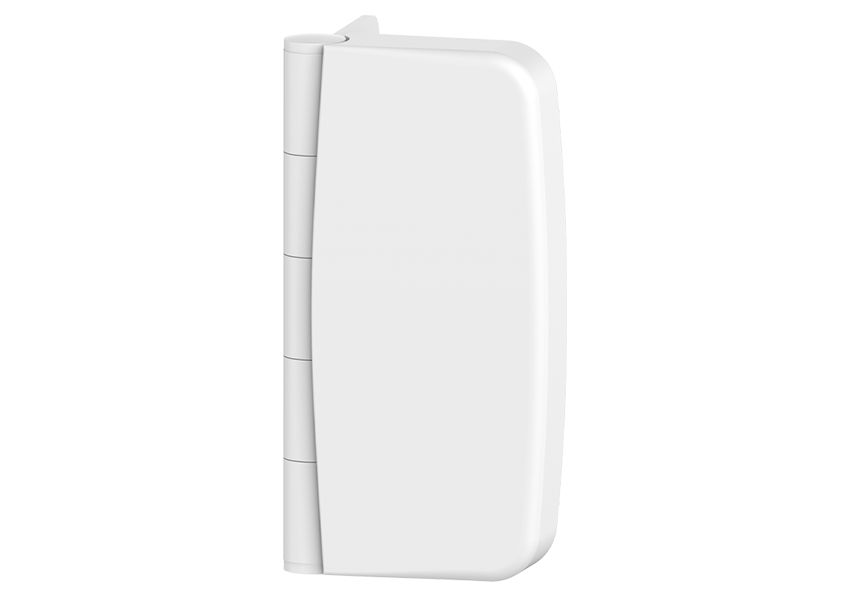

White

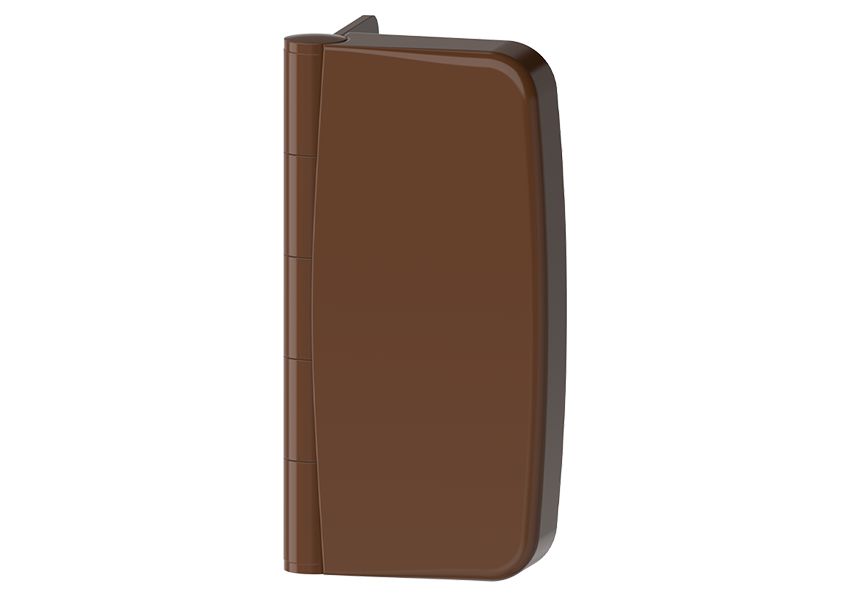

Light Oak

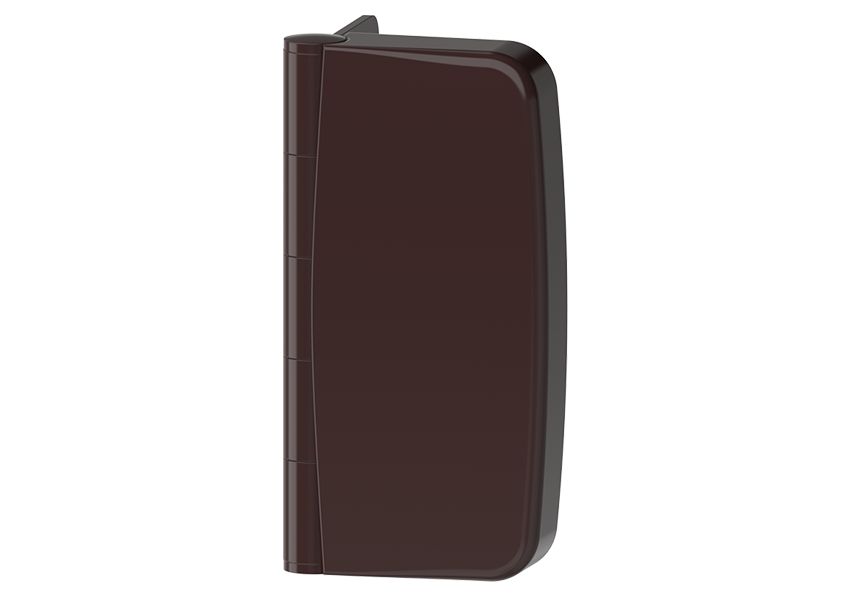

Brown
Anthracite Grey
Polished Gold Polished Chrome Smooth Satin Chrome Smokey Chrome Black White Light Oak Brown Evo Gold 14/19 Evo Chrome 14/19 Evo S/Satin 14/19 Evo S/Chrome 14/19 Evo Black 14/19 Evo White 14/19 Evo L/Oak 14/19 Evo Brown 14/19 Evo Gold 15/18 Evo Chrome 15/18 Evo S/Satin 15/18 Evo S/Chrome 15/18 Evo Black 15/18 Evo White 15/18 Evo L/Oak 15/18 Evo Brown 15/18 Evo Gold 16/17 Evo Chrome 16/17 Evo S/Satin 16/17 Evo S/Chrome 16/17 Evo Black 16/17 Evo White 16/17 Evo L/Oak 16/17 Evo Brown 16/17 Evo Gold 17/24 Evo Chrome 17/24 Evo S/Satin 17/24 Evo S/Chrome 17/24 Evo Black 17/24 Evo White 17/24 Evo L/Oak 17/24 Evo Brown 17/24 Evo Gold 18/23 Evo Chrome 18/23 Evo S/Satin 18/23 Evo S/Chrome 18/23 Evo Black 18/23 Evo White 18/23 Evo L/Oak 18/23 Evo Brown 18/23 Evo Gold 19/22 Evo Chrome 19/22 Evo S/Satin 19/22 Evo S/Chrome 19/22 Evo Black 19/22 Evo White 19/22 Evo L/Oak 19/22 Evo Brown 19/22 Evo Gold 20/21 Evo Chrome 20/21 Evo S/Satin 20/21 Evo S/Chrome 20/21 Evo Black 20/21 Evo White 20/21 Evo L/Oak 20/21 Evo Brown 20/21
